What are the dimensions of this SKF bearing?

The bore diameter is 75 mm, the outside diameter is 130 mm, and the total width is 41 mm.

What types of loads can this bearing accommodate?

This single-row tapered roller bearing accommodates combined radial loads and axial loads in one direction.

What is the contact angle of the SKF 33215/Q?

This bearing has a contact angle of 15.9°.

Can the inner and outer rings be mounted separately?

Yes, the inner ring with roller assembly (cone) and the outer ring (cup) are separable for easy mounting.

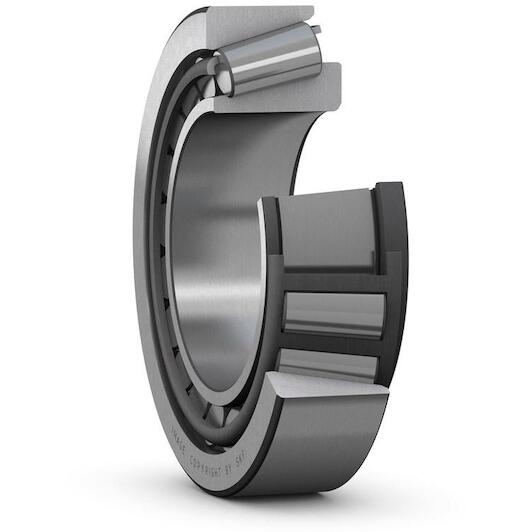

SKF 33215/Q single-row tapered roller bearing 75 x 130 x 41 mm with contact angle 15.9° - 33215

Supplier number: SKF 33215 | EAN 7316577327383

Recommended Retail Price €323.22

159.95 tax incl.

€132.19 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 14/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling under combined stress

Practical benefits

High combined load capacity: You accommodate heavy radial forces and single-direction axial loads simultaneously through the precision-engineered tapered raceways.
Low friction smooth running: The optimized roller design minimizes operational friction, allowing you to achieve longer service life and reduced operating temperatures.
Easy mounting and maintenance: Because the cone and cup of the 33215/Q are separable, you mount, inspect, and adjust each component independently.

In a nutshell

The right choise for

With the Skf 33215/Q single-row tapered roller bearing, you reliably accommodate heavy simultaneous radial and single-direction axial loads. Featuring precision-engineered tapered raceways and a 15.9° contact angle, this bearing provides high stiffness and precise shaft guidance in industrial gearboxes, drive units, and heavy vehicle wheel hubs. The optimized roller design minimizes operational friction to reduce operating temperatures and ensure a long service life. Because the inner cone assembly and outer cup of this 75 x 130 x 41 mm bearing are separable, mounting, adjustment, and maintenance are straightforward and efficient.

Product information FAQ

€159.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 75 mm
Number of rows: 1
Outer diameter: 130 mm
Width: 41 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 75 mm
Number of rows: 1
Outer diameter: 130 mm
Width: 41 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 31
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 3600
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 300
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 41
Width, total: 41
Contact angle: 15.916666666706
Limiting speed: 4800
Bore diameter: 75
Basic dynamic load rating: 255
Coating: Without
Outer diameter: 130
Unit system: Metric

Brand SKF
01110183
EAN 7316577327383
Supplier number SKF 33215

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bore diameter is 75 mm, the outside diameter is 130 mm, and the total width is 41 mm.
What types of loads can this bearing accommodate?: This single-row tapered roller bearing accommodates combined radial loads and axial loads in one direction.
What is the contact angle of the SKF 33215/Q?: This bearing has a contact angle of 15.9°.
Can the inner and outer rings be mounted separately?: Yes, the inner ring with roller assembly (cone) and the outer ring (cup) are separable for easy mounting.
