What are the dimensions of this SKF tapered roller bearing?

This bearing has an inside diameter of 55 mm, an outside diameter of 100 mm, and a total width of 35 mm.

What types of loads can this single-row bearing handle?

It is designed for combined loads, supporting high radial forces and axial forces in one direction.

What is the significance of the 14.9° contact angle?

The contact angle defines the axial load capacity: a larger angle provides higher resistance to axial forces.

Can the inner and outer rings be mounted separately?

Yes, the cone (inner ring with cage and rollers) and cup (outer ring) are separable for easy mounting.

How do you support axial loads in both directions?

Mount a second tapered roller bearing in a mirrored arrangement (in an X or O configuration).

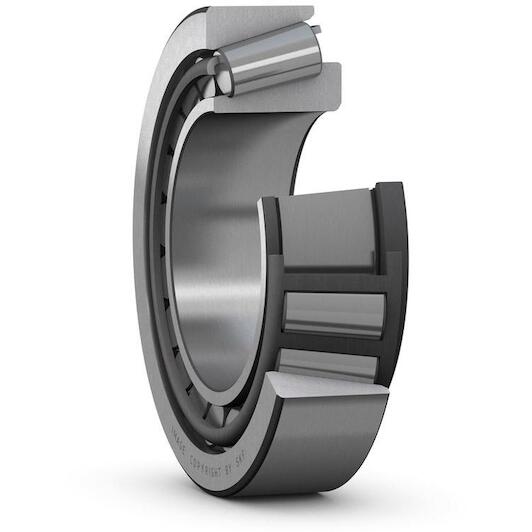

SKF 33211/Q single-row tapered roller bearing 55 x 100 x 35 mm with contact angle 14.9° - 33211

Supplier number: SKF 33211 | EAN 7316577327543

Recommended Retail Price €195.27

96.60 tax incl.

€79.83 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling for combined forces

Practical benefits

Skf 33211/Q tapered roller bearing: You support heavy radial and axial loads simultaneously with the optimized 14.9° contact angle design.
Separable design for mounting: You install and maintain inner and outer rings independently, making assembly faster and simpler.
Low friction during operation: You minimize heat build-up and mechanical wear during demanding continuous industrial operations.

In a nutshell

The right choise for

With the Skf 33211/Q single-row tapered roller bearing, you reliably support heavy combined radial and unidirectional axial loads. Featuring an optimized 14.9° contact angle and dimensions of 55 x 100 x 35 mm, this bearing is built for demanding applications in industrial gearboxes, vehicle wheel hubs, and agricultural or construction machinery. Its tapered design minimizes rotational friction and heat build-up, effectively preventing shaft deflection and premature wear. The separable cup and cone design ensures quick, straightforward mounting and maintenance. Pair it with a second bearing in a mirrored arrangement to handle bidirectional axial forces with total confidence.

Product information FAQ

€96.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Number of rows: 1
Outer diameter: 100 mm
Width: 35 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Number of rows: 1
Outer diameter: 100 mm
Width: 35 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 27
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 4800
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 190
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 35
Width, total: 35
Contact angle: 14.916666666704
Limiting speed: 6300
Bore diameter: 55
Basic dynamic load rating: 170
Coating: Without
Outer diameter: 100
Unit system: Metric

Brand SKF
01110212
EAN 7316577327543
Supplier number SKF 33211

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF tapered roller bearing?: This bearing has an inside diameter of 55 mm, an outside diameter of 100 mm, and a total width of 35 mm.
What types of loads can this single-row bearing handle?: It is designed for combined loads, supporting high radial forces and axial forces in one direction.
What is the significance of the 14.9° contact angle?: The contact angle defines the axial load capacity: a larger angle provides higher resistance to axial forces.
Can the inner and outer rings be mounted separately?: Yes, the cone (inner ring with cage and rollers) and cup (outer ring) are separable for easy mounting.
How do you support axial loads in both directions?: Mount a second tapered roller bearing in a mirrored arrangement (in an X or O configuration).
