What are the dimensions of this tapered roller bearing?

This bearing has an inside diameter of 25 mm, an outside diameter of 52 mm, and a total width of 22 mm.

What loads can the SKF 33205/Q handle?

It is designed to accommodate combined high radial loads and axial loads in one direction.

Are the inner and outer rings separable?

Yes, the inner ring assembly (cone and rollers) and the outer ring (cup) can be mounted and dismounted separately.

What is the contact angle of this bearing?

The contact angle of the SKF 33205/Q is 13.2°.

How do you support axial loads in both directions?

Pair it with a second single row tapered roller bearing in an opposed arrangement to support bidirectional axial loads.

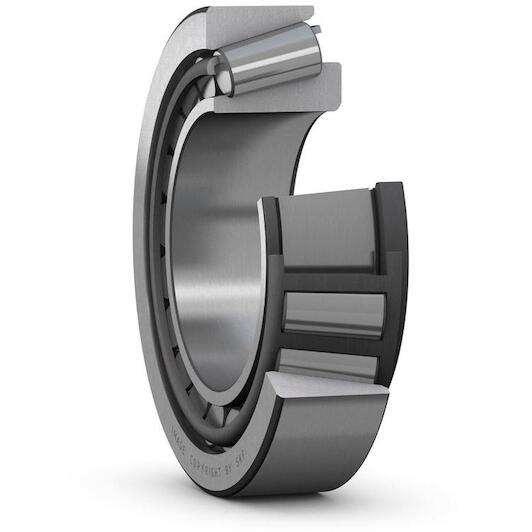

SKF 33205/Q single-row tapered roller bearing 25 x 52 x 22 mm with contact angle 13.2° - 33205

Supplier number: SKF 33205 | EAN 7316577327574

Recommended Retail Price €57.35

28.20 tax incl.

€23.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable performance under combined loads

Practical benefits

High combined load capacity: You accommodate simultaneous radial and axial forces efficiently with this durable Skf tapered roller bearing.
Easy mounting and maintenance: Because the inner and outer rings are separable, you can install and inspect components with ease.
Low friction during operation: The optimized roller geometry minimizes operating friction so you achieve smooth rotation and extended service life.

In a nutshell

The right choise for

With the Skf 33205/Q single row tapered roller bearing, you reliably accommodate simultaneous high radial loads and axial forces in one direction. Thanks to the conical raceways with a 13.2° contact angle, dynamic stresses are evenly distributed to maintain shaft alignment and rigidity in industrial gearboxes, wheel hubs, and drivetrains. The optimized roller geometry minimizes friction to deliver smooth rotation under heavy-duty conditions. Because the inner ring assembly and outer ring are separable, you can mount, inspect, and maintain this 25 x 52 x 22 mm bearing quickly and easily.

Product information FAQ

€28.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Number of rows: 1
Outer diameter: 52 mm
Width: 22 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Number of rows: 1
Outer diameter: 52 mm
Width: 22 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 18
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 10000
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 56
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 22
Width, total: 22
Contact angle: 13.166666666699
Limiting speed: 13000
Bore diameter: 25
Basic dynamic load rating: 57.9
Coating: Without
Outer diameter: 52
Unit system: Metric

Brand SKF
01110351
EAN 7316577327574
Supplier number SKF 33205

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this tapered roller bearing?: This bearing has an inside diameter of 25 mm, an outside diameter of 52 mm, and a total width of 22 mm.
What loads can the SKF 33205/Q handle?: It is designed to accommodate combined high radial loads and axial loads in one direction.
Are the inner and outer rings separable?: Yes, the inner ring assembly (cone and rollers) and the outer ring (cup) can be mounted and dismounted separately.
What is the contact angle of this bearing?: The contact angle of the SKF 33205/Q is 13.2°.
How do you support axial loads in both directions?: Pair it with a second single row tapered roller bearing in an opposed arrangement to support bidirectional axial loads.
