skf_3314anr
SKF

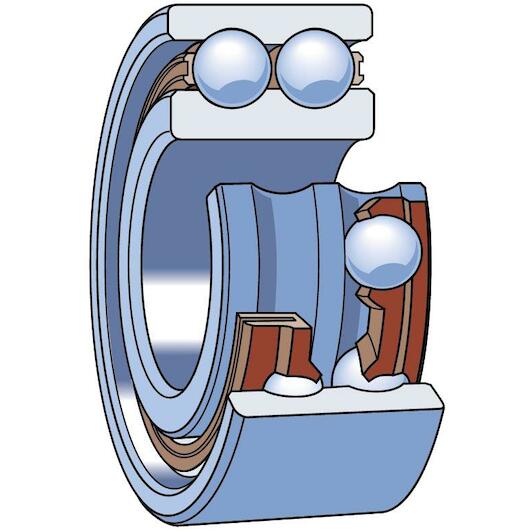

SKF 3314 ANR double-row angular contact ball bearing 70 x 150 x 63.5 mm with contact angle 30°

Recommended Retail Price €1,658.39
820.95 tax incl.
€678.47 excl. VAT (incl. all environmental contributions)
On order: delivered from 25/06/2026
each

  • Ordered before 20:00 - delivered as of 25/06/2026
  • Free shipping
  • Delivery by DHL

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space, and are particularly suitable in applications where a stiff bearing arrangement is required. They can accommodate radial loads, axial loads in either direction and tilting moments. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces.

  • High-speed capability
  • Accommodate relatively high radial loads and large axial loads in both directions
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 63,5 mm
  • Number of rows: 2
  • Axial clearance: CN (Normal)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (sheet)
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571485560
  • Supplier number: SKF 3314 ANR
Inner diameter
70 mm
Width
63,5 mm
Number of rows
2
Axial clearance
CN (Normal)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (sheet)
Outer diameter
150 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
125
Lubricant
None
Relubrication feature
Without
Reference speed
5000
Skf performance class
SKF Explorer
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Without
Bore diameter
70
Axial internal clearance
CN
Contact angle
30
Limiting speed
4300
Basic dynamic load rating
163
Coating
Without
Outside diameter
150
Universal matching bearing
No
