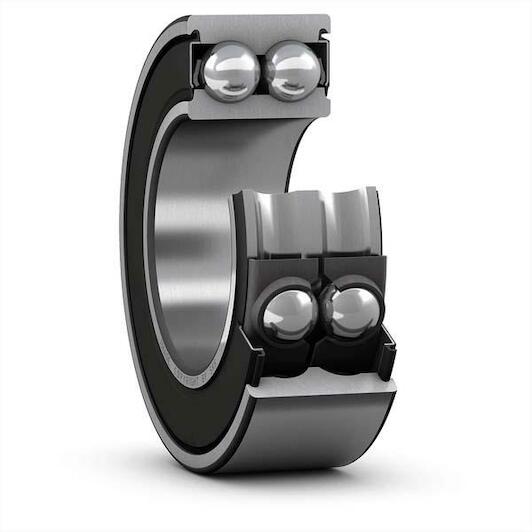

SKF 3308 A-2RS1 double-row angular contact ball bearing with seal on both sides 40 mm

Recommended Retail Price €460.66
227.95 tax incl.
€188.39 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 40 mm
  • Width: 36,5 mm
  • Number of rows: 2
  • Axial clearance: CN (Normal)
  • Seal (bearing): Double-sided sealed
  • Material (cage): Brass (sheet)
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316573932383
  • Supplier number: SKF 3308 A-2RS1
Inner diameter
40 mm
Width
36,5 mm
Number of rows
2
Axial clearance
CN (Normal)
Seal (bearing)
Double-sided sealed
Material (cage)
Brass (sheet)
Outer diameter
90 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
48
Lubricant
Grease
Relubrication feature
Without
Skf performance class
SKF Explorer
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Sealing type
Contact
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Seal on both sides
Bore diameter
40
Axial internal clearance
CN
Contact angle
30
Limiting speed
5000
Basic dynamic load rating
65.5
Coating
Without
Outside diameter
90
Universal matching bearing
No
