SKF

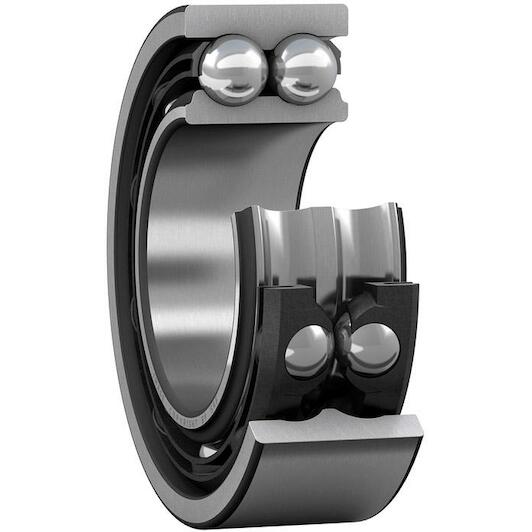

SKF 3307 A/C3 double-row angular contact ball bearing 35 x 80 x 34.9 mm with 30° contact angle

Recommended Retail Price €266.12
131.60 tax incl.
€108.76 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 35 mm
  • Width: 34,9 mm
  • Number of rows: 2
  • Axial clearance: C3
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (sheet)
  • Outer diameter: 80 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571185521
  • Supplier number: SKF 3307 A/C3
Inner diameter
35 mm
Width
34,9 mm
Number of rows
2
Axial clearance
C3
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (sheet)
Outer diameter
80 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
38
Lubricant
None
Relubrication feature
Without
Reference speed
8500
Skf performance class
SKF Explorer
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Sheet metal
Material, bearing
Bearing steel
Sealing
Without
Bore diameter
35
Axial internal clearance
C3
Contact angle
30
Limiting speed
8500
Basic dynamic load rating
54
Coating
Without
Outside diameter
80
Universal matching bearing
No
