SKF

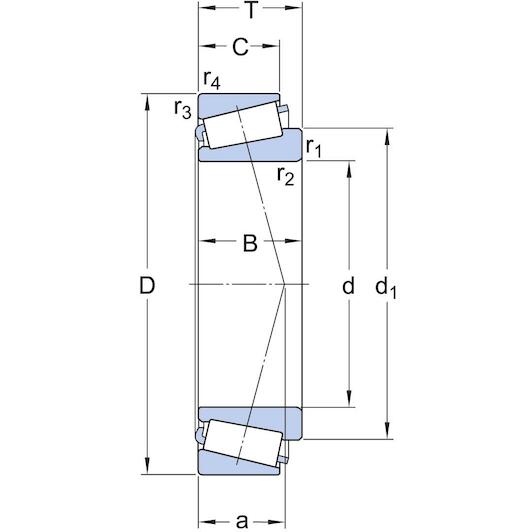

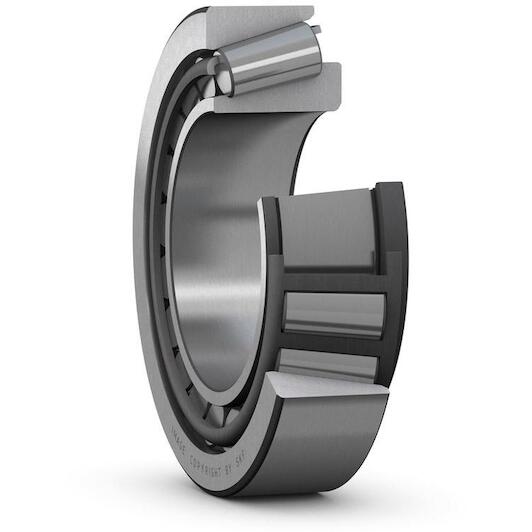

SKF 32940 single-row tapered roller bearing 200 x 280 x 51 mm with contact angle 14.7°

Recommended Retail Price €2,203.46
1,090.80 tax incl.
€901.49 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 200 mm
  • Number of rows: 1
  • Outer diameter: 280 mm
  • Width: 51 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577120786
  • Supplier number: SKF 32940
Inner diameter
200 mm
Number of rows
1
Outer diameter
280 mm
Width
51 mm
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
39
Lubricant
None
Arrangement of contact angle (double-row bearing)
Not applicable
Reference speed
1700
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
950
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Skf performance class
SKF Explorer
Width, inner ring
51
Width, total
51
Contact angle
14.75
Limiting speed
2000
Bore diameter
200
Basic dynamic load rating
588
Coating
Without
Outside diameter
280
Unit system
Metric
