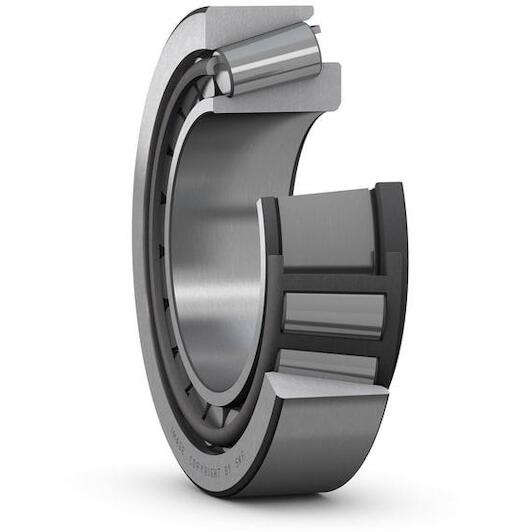

SKF 32326 single-row tapered roller bearing 130 mm

SKF
Supplier number: SKF 32326 | EAN 7316579634564
Recommended Retail Price €5,765.77
2,854.60 tax incl.
€2,359.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Free shipping
  • Delivery by DHL
✆ Talk to a specialist


Product information
€2,854.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 130 mm
  • Width: 98,75 mm
  • Number of rows: 1
  • Outer diameter: 280 mm

Product description

  • Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components

All Features

Inner diameter
130 mm
Width
98,75 mm
Number of rows
1
Outer diameter
280 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
78
Lubricant
None
Reference speed
1600
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
1340
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Contact angle
12.95277777781
Width, total
98.75
Width, inner ring
93
Limiting speed
2400
Bore diameter
130
Basic dynamic load rating
1019
Coating
Without
Outer diameter
280
Unit system
Metric
  • Brand SKF
  • EAN 7316579634564
  • Supplier number SKF 32326
