SKF

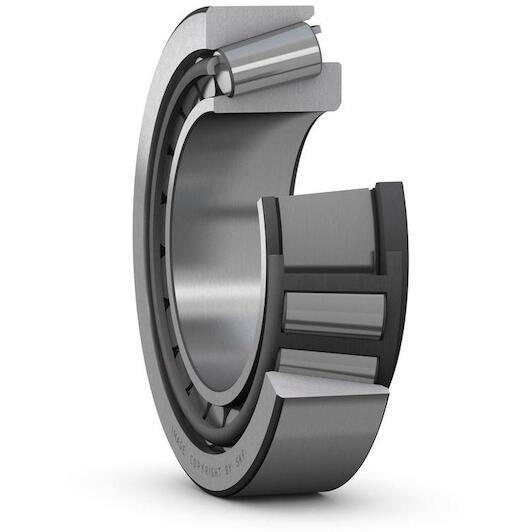

SKF 32316 J2 single-row tapered roller bearing 80 x 170 x 61.5 mm with contact angle 13°

Recommended Retail Price €722.35
357.60 tax incl.
€295.54 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 61,5 mm
  • Number of rows: 1
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577006127
  • Supplier number: SKF 32316 J2
Inner diameter
80 mm
Width
61,5 mm
Number of rows
1
Outer diameter
170 mm
Width, total
61.5 mm
Cage
Sheet metal
Width, outer ring
48 mm
Lubricant
None
Reference speed
3,000 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
500.00000025606 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Contact angle
12.952777777778 °
Width, inner ring
58 mm
Limiting speed
4,000 r/min
Bore diameter
80 mm
Basic dynamic load rating
380.00000019461 kN
Coating
Without
Outside diameter
170 mm
Bore type
Cylindrical
