What are the dimensions of this tapered roller bearing?

The bearing has a 65 mm inner diameter, a 140 mm outer diameter, and a total width of 51 mm.

What loads can this bearing support?

This single-row bearing accommodates combined radial and axial loads in one direction.

Can the inner and outer rings be mounted separately?

Yes, the inner ring assembly and outer ring are separable, making mounting and maintenance easier.

What is the contact angle of the SKF 32313 J2/Q?

This tapered roller bearing has a contact angle of 13°.

Does this bearing come pre-lubricated?

No, this open bearing is supplied without lubricant and requires lubrication before installation.

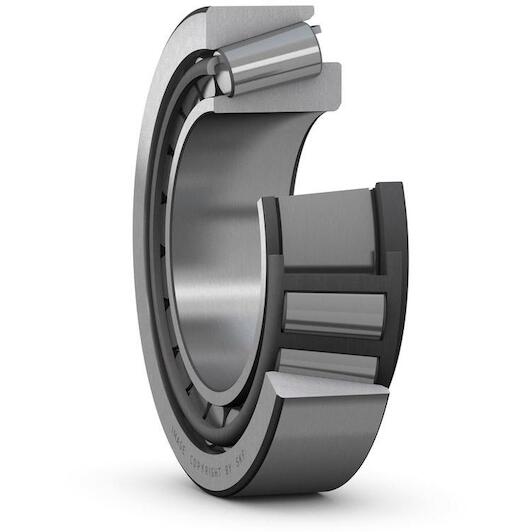

SKF 32313 J2/Q single-row tapered roller bearing 65 x 140 x 51 mm with contact angle 13° - 32313

Supplier number: SKF 32313 | EAN 7316577327864

Recommended Retail Price €366.69

181.40 tax incl.

€149.92 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 15/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth operation with Skf

Practical benefits

High combined load capacity: You reliably accommodate simultaneous radial and axial forces across demanding heavy-duty rotary applications.
Low friction in operation: The optimized roller design ensures you benefit from smooth running, minimal heat build-up, and extended component life.
Separable rings for mounting: Because the cone and cup separate easily, you handle installation, adjustment, and routine maintenance with ease.

In a nutshell

The right choise for

With the Skf 32313 J2/Q single-row tapered roller bearing, you keep heavy-duty gearboxes and drive systems operating smoothly under demanding conditions. Measuring 65 x 140 x 51 mm with a 13° contact angle, this bearing reliably accommodates combined heavy radial and single-direction axial loads. The optimized raceways reduce rotational friction and heat build-up, maintaining shaft stability and long component life. Because the inner and outer rings are separable, you can handle mounting, alignment, and routine maintenance quickly and accurately.

Product information FAQ

€181.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Number of rows: 1
Outer diameter: 140 mm
Width: 51 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Number of rows: 1
Outer diameter: 140 mm
Width: 51 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 39
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 3600
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 335
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 48
Width, total: 51
Contact angle: 12.95277777781
Limiting speed: 4800
Bore diameter: 65
Basic dynamic load rating: 323
Coating: Without
Outer diameter: 140
Unit system: Metric

Brand SKF
01110110
EAN 7316577327864
Supplier number SKF 32313

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this tapered roller bearing?: The bearing has a 65 mm inner diameter, a 140 mm outer diameter, and a total width of 51 mm.
What loads can this bearing support?: This single-row bearing accommodates combined radial and axial loads in one direction.
Can the inner and outer rings be mounted separately?: Yes, the inner ring assembly and outer ring are separable, making mounting and maintenance easier.
What is the contact angle of the SKF 32313 J2/Q?: This tapered roller bearing has a contact angle of 13°.
Does this bearing come pre-lubricated?: No, this open bearing is supplied without lubricant and requires lubrication before installation.
