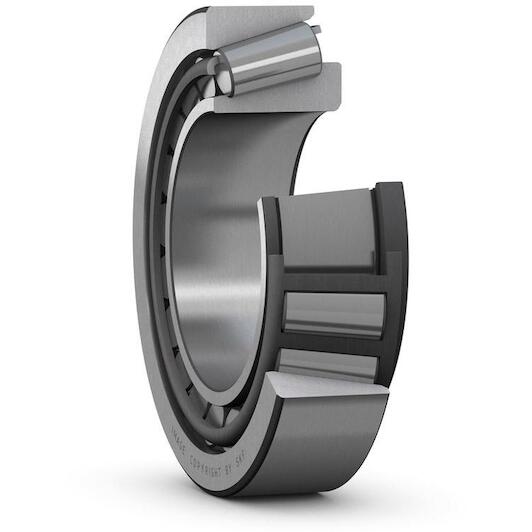

SKF 32234 J2 single-row tapered roller bearing 170 x 310 x 91 mm with contact angle 16.2° - 32234

SKF
Supplier number: SKF 32234 | EAN 7316577476012
Recommended Retail Price €6,522.29
3,228.95 tax incl.
€2,668.55 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/10/2026

  • Ordered before 20:00 - delivered as of 23/10/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€3,228.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 170 mm
  • Number of rows: 1
  • Outer diameter: 310 mm
  • Width: 91 mm

Product description

  • Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
170 mm
Number of rows
1
Outer diameter
310 mm
Width
91 mm
Candidate for remanufacturing
Yes
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
71
Arrangement of contact angle (double-row bearing)
Not applicable
Reference speed
1500
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
1630
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Lubricant
None
Width, inner ring
86
Width, total
91
Contact angle
16.172222222262
Limiting speed
2000
Bore diameter
170
Basic dynamic load rating
1075
Coating
Without
Outer diameter
310
Unit system
Metric
  • Brand SKF
  • EAN 7316577476012
  • Supplier number SKF 32234
