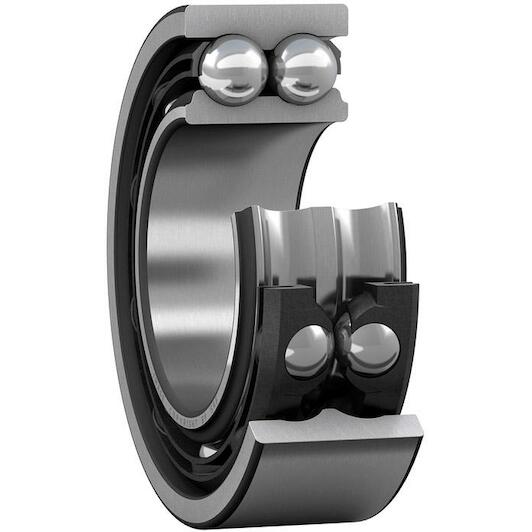

SKF 3207 ATN9 double-row angular contact ball bearing 35 x 72 x 27 mm with 30° contact angle

Supplier number: SKF 3207 ATN9 | EAN 7316577051820

Recommended Retail Price €159.47

78.80 tax incl.

€65.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Superior stability under combined loads

Practical benefits

Reliable Skf engineering: You accommodate high radial and axial loads in both directions with exceptional rigidity.
Compact space design: You save valuable axial space compared to using two single-row angular contact bearings.
Smooth polyamide cage: The reinforced polymer cage delivers quiet operation and low friction at high speeds.

In a nutshell

The right choise for

With the Skf 3207 ATN9 double-row angular contact ball bearing, you achieve rigid shaft guidance under demanding combined loads. Its double-row design with a 30° contact angle accommodates radial forces and bidirectional axial loads simultaneously. This saves valuable axial installation space compared to paired single-row bearings. The glass-fibre reinforced polyamide cage ensures smooth, quiet operation at high speeds. Because this is an open bearing without seals, you can apply the exact lubrication required for your pumps, compressors, or industrial machinery.

Product information FAQ

€78.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 27 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 72 mm

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 27 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 72 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 30
Lubricant: None
Relubrication feature: Without
Reference speed: 9000
Skf performance class: SKF Explorer
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Without
Bore diameter: 35
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 9000
Basic dynamic load rating: 40.5
Coating: Without
Outside diameter: 72
Universal matching bearing: No

Brand SKF
01050008
EAN 7316577051820
Supplier number SKF 3207 ATN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: This bearing has an inside diameter of 35 mm, an outside diameter of 72 mm, and a width of 27 mm.
What loads can the SKF 3207 ATN9 accommodate?: Its double row design with a 30° contact angle accommodates radial loads as well as axial loads in both directions simultaneously.
What does the TN9 suffix indicate?: The TN9 suffix indicates that the bearing features a glass-fibre reinforced polyamide (synthetic) cage.
Is this ball bearing sealed or pre-lubricated?: No, this is an open bearing without integrated seals. You need to apply suitable lubrication for your application during installation.
What internal clearance does this bearing have?: This bearing features standard normal axial internal clearance (designated as CN).
