skf_3205atn9c2
SKF

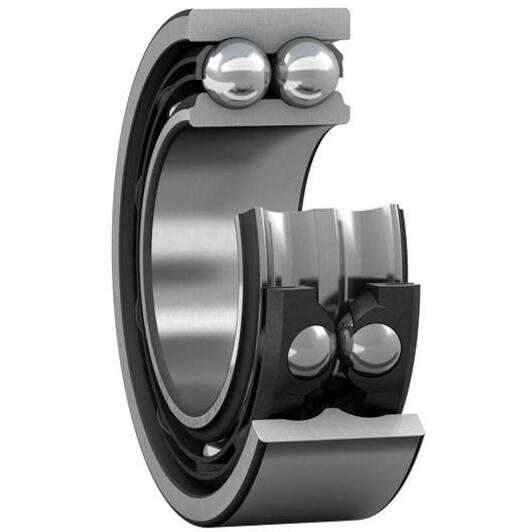

SKF 3205 ATN9/C2 double-row angular contact ball bearing without seal 25 mm

Recommended Retail Price €109.14
53.95 tax incl.
€44.59 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 20,6 mm
  • Number of rows: 2
  • Axial clearance: C2
  • Seal (bearing): Without seal
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571008790
  • Supplier number: SKF 3205 ATN9/C2
Inner diameter
25 mm
Width
20,6 mm
Number of rows
2
Axial clearance
C2
Seal (bearing)
Without seal
Outer diameter
52 mm
Matched arrangement
No
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
15.3
Skf performance class
SKF Explorer
Relubrication feature
Without
Reference speed
12000
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Lubricant
None
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Without
Limiting speed
12000
Axial internal clearance
C2
Contact angle
30
Bore diameter
25
Basic dynamic load rating
22
Coating
Without
Outside diameter
52
Universal matching bearing
No
