SKF

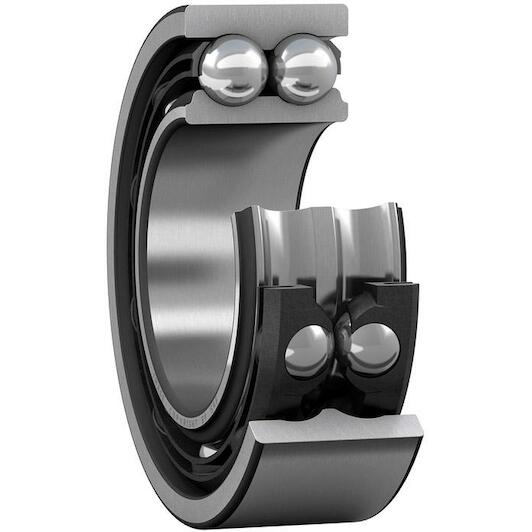

SKF 3203 ATN9/C3 double-row angular contact ball bearing 17 x 40 x 17.5 mm with contact angle 30°

Recommended Retail Price €87.88
43.40 tax incl.
€35.87 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 17 mm
  • Width: 17,5 mm
  • Number of rows: 2
  • Axial clearance: C3
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Plastic
  • Outer diameter: 40 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577004024
  • Supplier number: SKF 3203 ATN9/C3
Inner diameter
17 mm
Width
17,5 mm
Number of rows
2
Axial clearance
C3
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Plastic
Outer diameter
40 mm
Basic static load rating
8.8
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
19000
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Without
Axial internal clearance
C3
Contact angle
30
Limiting speed
16000
Bore diameter
17
Basic dynamic load rating
14.3
Coating
Without
Outside diameter
40
Universal matching bearing
No
