What are the dimensions of this SKF angular contact ball bearing?

The bearing has a 15 mm inside diameter, a 35 mm outside diameter, and a width of 15.9 mm.

What loads can this bearing accommodate?

This double-row bearing with a 30° contact angle accommodates radial loads and axial forces in both directions.

What does the 2Z designation mean?

It indicates that the bearing is equipped with metal shields on both sides to protect against dirt and debris.

What does the TN9 suffix indicate?

The TN9 suffix indicates that the cage is made from glass-fibre reinforced polyamide.

What internal clearance does this bearing have?

This bearing has standard normal internal clearance (designated as CN or C0).

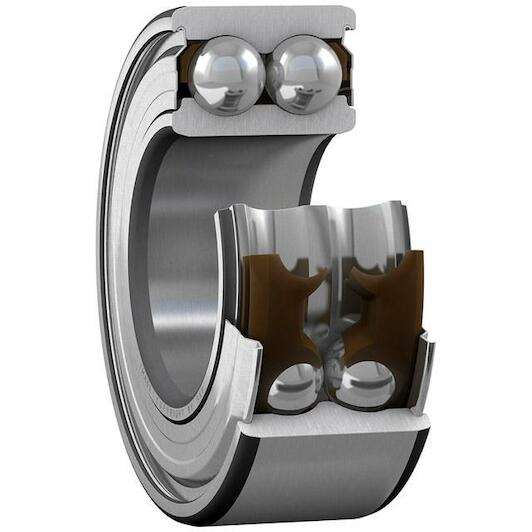

SKF 3202 A-2ZTN9/MT33 double-row angular contact ball bearing 15 x 35 x 15.9 mm with 30° contact angle

Supplier number: SKF 3202 A-2ZTN9/MT33 | EAN 7316570248449

Recommended Retail Price €102.37

50.60 tax incl.

€41.82 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered as of 14/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance under combined loads

Practical benefits

Supports simultaneous heavy loads: The 30° contact angle lets you handle high radial loads alongside axial forces in both directions efficiently.
Double shielded dirt protection: Metal shields on both sides prevent dust ingress while retaining lubricant inside to extend operating service life.
Smooth polyamide cage operation: The engineered polymer cage in the 3202 A-2ZTN9/MT33 reduces internal friction and ensures smooth, quiet rotation.

In a nutshell

The right choise for

With the Skf 3202 A-2ZTN9/MT33 double-row angular contact ball bearing, you ensure dependable performance in compact machinery and drive units. Featuring a 30° contact angle, it efficiently handles simultaneous radial loads and bidirectional axial forces without requiring matched pairs of single bearings. Dual metal shields keep dirt and dust out while retaining lubrication to extend service life. In addition, the lightweight glass-fibre reinforced polyamide cage reduces friction and vibration, delivering smooth and quiet rotational operation. Measuring 15 x 35 x 15.9 mm with normal clearance, this bearing is an ideal solution for demanding industrial environments.

Product information FAQ

€50.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 15,9 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 35 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 15,9 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 35 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 6.8
Sealing type: Non-contact
Relubrication feature: Without
Reference speed: 22000
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Shield on both sides
Bore diameter: 15
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 18000
Basic dynamic load rating: 11.2
Coating: Without
Outer diameter: 35
Universal matching bearing: No

Brand SKF
01050356
EAN 7316570248449
Supplier number SKF 3202 A-2ZTN9/MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact ball bearing?: The bearing has a 15 mm inside diameter, a 35 mm outside diameter, and a width of 15.9 mm.
What loads can this bearing accommodate?: This double-row bearing with a 30° contact angle accommodates radial loads and axial forces in both directions.
What does the 2Z designation mean?: It indicates that the bearing is equipped with metal shields on both sides to protect against dirt and debris.
What does the TN9 suffix indicate?: The TN9 suffix indicates that the cage is made from glass-fibre reinforced polyamide.
What internal clearance does this bearing have?: This bearing has standard normal internal clearance (designated as CN or C0).
