SKF 3201 A-2ZTN9/MT33 double-row angular contact ball bearing 12 x 32 x 15.9 mm with contact angle 30°

Supplier number: SKF 3201 A-2ZTN9/MT33 | EAN 7316570966503

Recommended Retail Price €97.94

48.40 tax incl.

€40.00 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load capacity in compact spaces

Practical benefits

Proven engineering by Skf: You effortlessly accommodate high radial and bidirectional axial loads thanks to the double-row design with a 30° contact angle.
Dual metallic shield protection: Built-in shields on both sides retain lubrication while keeping dust and debris out of your mechanical assembly.
Smooth and quiet operation: The lightweight polymer cage minimizes friction and heat, ensuring you achieve dependable efficiency and a longer service life.

In a nutshell

The right choise for

With the Skf 3201 A-2ZTN9/MT33 double-row angular contact ball bearing, you ensure dependable performance for demanding mechanical assemblies. Its double-row construction and 30° contact angle allow you to accommodate combined radial and bidirectional axial loads within a compact 12 x 32 x 15.9 mm space. Metal shields on both sides keep dust and debris out, while the factory-filled MT33 grease eliminates the need for initial lubrication. The lightweight glass-fiber reinforced polymer cage minimizes friction and operating noise, providing rigid, smooth shaft guidance in pumps, gearboxes, and electric motors.

Product information FAQ

€48.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Width: 15,9 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 32 mm

Product description

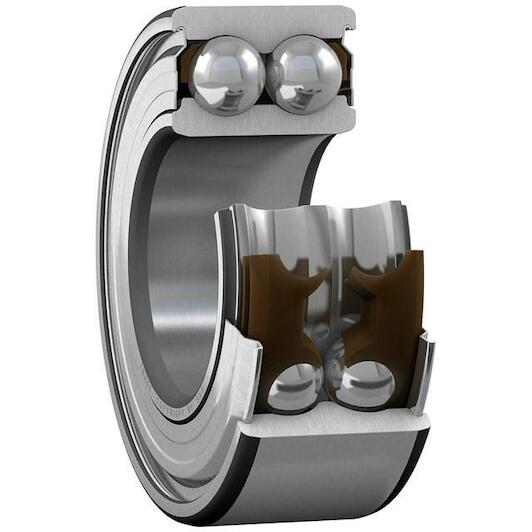

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Width: 15,9 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 32 mm
Matched arrangement: No
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 5.6
Sealing type: Non-contact
Relubrication feature: Without
Reference speed: 24000
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Shield on both sides
Bore diameter: 12
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 22000
Basic dynamic load rating: 10.1
Coating: Without
Outside diameter: 32
Universal matching bearing: No

Brand SKF
01050354
EAN 7316570966503
Supplier number SKF 3201 A-2ZTN9/MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: This bearing has an inside diameter of 12 mm, an outside diameter of 32 mm, and a width of 15.9 mm.
What loads can this angular contact ball bearing accommodate?: With its double-row design and 30° contact angle, it supports combined radial and axial loads in both directions.
How is this bearing sealed?: The bearing is equipped with metal shields on both sides (2Z) to protect against dirt and debris.
What material is the cage made of?: The cage is made of glass-fiber reinforced polyamide (plastic), denoted by the suffix TN9.
What does the MT33 designation mean?: The MT33 designation indicates that the bearing is factory pre-lubricated with a medium-temperature grease.
