What are the dimensions of this angular contact ball bearing?

The bearing has a 10 mm bore diameter, a 30 mm outside diameter, and a width of 14 mm.

What loads can this bearing accommodate?

With a 30° contact angle, this double-row bearing supports radial loads and axial forces in both directions simultaneously.

What sealing does this SKF bearing have?

It features contact rubber seals on both sides (2RS1) to protect against contaminants and retain grease.

What material is the cage made of?

The cage is made from glass-fibre reinforced polyamide (TN9).

What internal clearance does this bearing have?

This bearing has a normal standard internal clearance (CN).

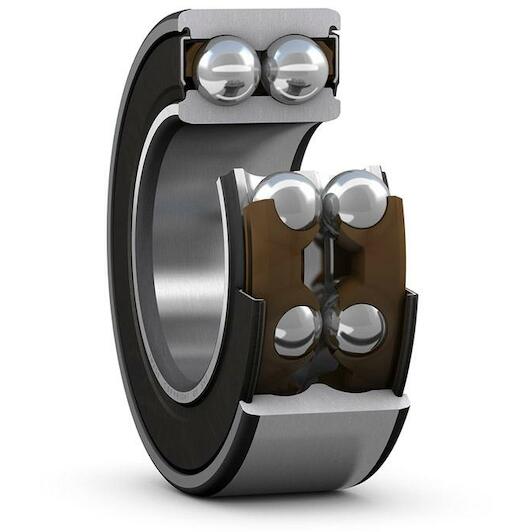

SKF 3200 A-2RS1TN9/MT33 double-row angular contact ball bearing 10 x 30 x 14 mm with 30° contact angle

Supplier number: SKF 3200 A-2RS1TN9/MT33 | EAN 7316570696394

Recommended Retail Price €104.83

51.80 tax incl.

€42.81 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance under combined loads

Practical benefits

Bidirectional axial load support: The double-row design with a 30° contact angle accommodates heavy radial loads and axial forces in both directions.
Sealed against dirt ingress: Rubber contact seals on both sides retain the internal grease and protect your assembly from external contamination.
Compact and rigid design: Sized at 10 x 30 x 14 mm with a lightweight polyamide cage, it delivers stable running accuracy in tight spaces.

In a nutshell

The right choise for

With the Skf 3200 A-2RS1TN9/MT33 double-row angular contact ball bearing, you gain a compact and dependable solution for high-demand rotating assemblies. Designed with a 30° contact angle, it accommodates heavy radial loads alongside axial forces in both directions simultaneously. The double rubber contact seals provide effective protection against dust and moisture while retaining internal grease. Sized at 10 x 30 x 14 mm with a lightweight polyamide cage and normal internal clearance, this pre-greased bearing ensures rigid, accurate guidance across pumps, gearboxes, and electric motors.

Product information FAQ

€51.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 10 mm
Width: 14 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 30 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 10 mm
Width: 14 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 30 mm
Basic static load rating: 4.3
Locating feature, bearing outer ring: None
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Sealing type: Contact
Matched arrangement: No
Relubrication feature: Without
Lubricant: Grease
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 17000
Bore diameter: 10
Basic dynamic load rating: 7.61
Coating: Without
Outer diameter: 30
Universal matching bearing: No

Brand SKF
01050351
EAN 7316570696394
Supplier number SKF 3200 A-2RS1TN9/MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: The bearing has a 10 mm bore diameter, a 30 mm outside diameter, and a width of 14 mm.
What loads can this bearing accommodate?: With a 30° contact angle, this double-row bearing supports radial loads and axial forces in both directions simultaneously.
What sealing does this SKF bearing have?: It features contact rubber seals on both sides (2RS1) to protect against contaminants and retain grease.
What material is the cage made of?: The cage is made from glass-fibre reinforced polyamide (TN9).
What internal clearance does this bearing have?: This bearing has a normal standard internal clearance (CN).
