SKF

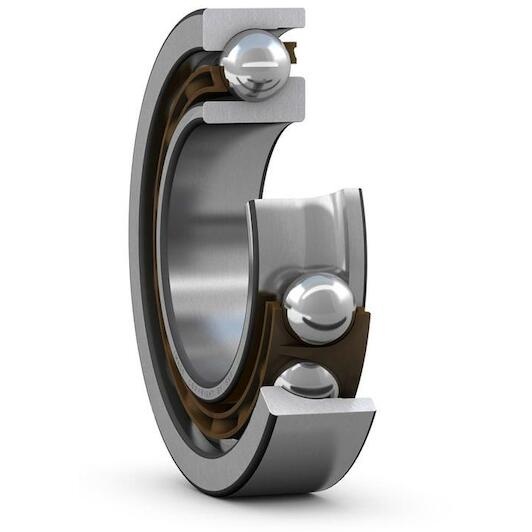

SKF 307418 C single-row angular contact ball bearing 65 x 96.6 x 23 mm with contact angle 20°

Recommended Retail Price €419.77
207.80 tax incl.
€171.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 23 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Material (bearing seal): Not applicable
  • Outer diameter: 96,6 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576676796
  • Supplier number: SKF 307418 C
Inner diameter
65 mm
Width
23 mm
Number of rows
1
Axial clearance
Not applicable
Material (bearing seal)
Not applicable
Outer diameter
96,6 mm
Contact type
Normal contact (two-point contact)
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Relubrication feature
Without
Basic static load rating
22
Matched arrangement
No
Axial internal clearance
Not applicable
Reference speed
7500
Lubricant
None
Material, bearing
Bearing steel
Sealing
Capped
Bore diameter
65
Contact angle
20
Limiting speed
7500
Basic dynamic load rating
22.5
Coating
Without
Outside diameter
96.6
Universal matching bearing
No
