What are the exact dimensions of this SKF cam roller?

The cam roller has an inside diameter of 20 mm, an outside diameter of 52 mm, and a width of 20.6 mm.

What is the benefit of the crowned outer ring profile?

The crowned surface distributes load evenly and prevents edge stresses caused by angular misalignment or shaft tilting.

What does the 2Z designation mean?

The 2Z suffix indicates non-contact sheet metal shields on both sides to retain grease and keep out contaminants.

Can this yoke-type track roller be relubricated?

Yes, it features a lubrication hole in the inner ring for easy relubrication during maintenance.

Where is this double-row cam roller typically used?

It is designed for track systems, cam drives, conveyor machinery, and linear guides carrying high radial loads.

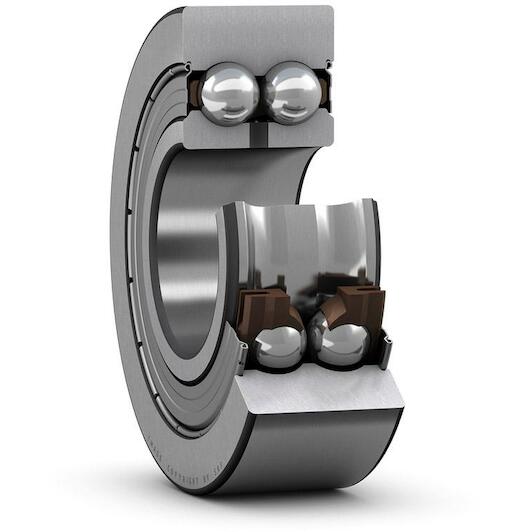

SKF 305804 C-2Z two-row cam roller (Yoke-type idler) 20 x 52 x 20.6 mm

Supplier number: SKF 305804 C-2Z | EAN 7316577742728

Recommended Retail Price €162.50

80.40 tax incl.

€66.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable motion with Skf roller

Practical benefits

Even distribution of load: The crowned outer surface prevents edge stresses and easily compensates for minor angular misalignments in your setup.
Protection against unwanted debris: Integrated metal shields on both sides retain lubricant effectively while keeping harmful dirt and dust out.
Convenient and quick relubrication: You can easily add fresh grease through the lubrication hole to extend overall service life.

In a nutshell

The right choise for

With the double-row Skf 305804 C-2Z cam roller, you achieve smooth, reliable motion across demanding conveyor lines, track systems, and cam drives. Its crowned outer ring profile prevents edge stresses and easily compensates for angular misalignments. Built with a double-row design, this yoke-type roller delivers exceptional load ratings and stability under heavy radial forces. The dual-sided 2Z metal shields keep dust and debris out while securing lubricant inside. When routine maintenance is required, the built-in lubrication hole in the inner ring allows you to quickly add grease, extending component service life and minimizing unexpected machinery downtime.

Product information FAQ

€80.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 20,6 mm
Number of rows: 2
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: Not applicable
Axial clearance: CN (Normal)
Outer ring profile: Spherical
Outer diameter: 52 mm

Product description

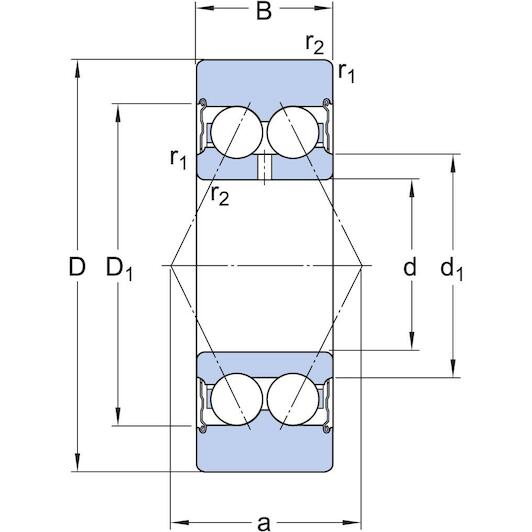

These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a crowned running surface prevents edge stresses under skewing. They are supplied greased, sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity and relatively high speed capability
Accommodate tilting moments
Long service life
Ready to mount
Integral sealing, for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 20,6 mm
Number of rows: 2
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: Not applicable
Axial clearance: CN (Normal)
Outer ring profile: Spherical
Outer diameter: 52 mm
Basic static load rating: 9.8
Bearing part: Complete track roller
Tolerance class: Normal (except crowned running surface)
Radial internal clearance: Not applicable
Material, bearing: Bearing steel
Relubrication feature: With
Lubricant: Grease
Sealing type: Non-contact
Cage: With
Sealing: Shield on both sides
Functional outside diameter: 52
Axial guidance of outer ring: Yes
Axial internal clearance: Normal
Limiting speed: 9500
Bore diameter: 20
Basic dynamic load rating: 17.8
Coating: Without
Rolling elements: Balls

Brand SKF
01211088
EAN 7316577742728
Supplier number SKF 305804 C-2Z

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF cam roller?: The cam roller has an inside diameter of 20 mm, an outside diameter of 52 mm, and a width of 20.6 mm.
What is the benefit of the crowned outer ring profile?: The crowned surface distributes load evenly and prevents edge stresses caused by angular misalignment or shaft tilting.
What does the 2Z designation mean?: The 2Z suffix indicates non-contact sheet metal shields on both sides to retain grease and keep out contaminants.
Can this yoke-type track roller be relubricated?: Yes, it features a lubrication hole in the inner ring for easy relubrication during maintenance.
Where is this double-row cam roller typically used?: It is designed for track systems, cam drives, conveyor machinery, and linear guides carrying high radial loads.
