SKF

SKF 305262 D double-row angular contact ball bearing 180 x 259.5 x 66 mm with contact angle 32°

Recommended Retail Price €3,763.62
1,863.20 tax incl.
€1,539.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

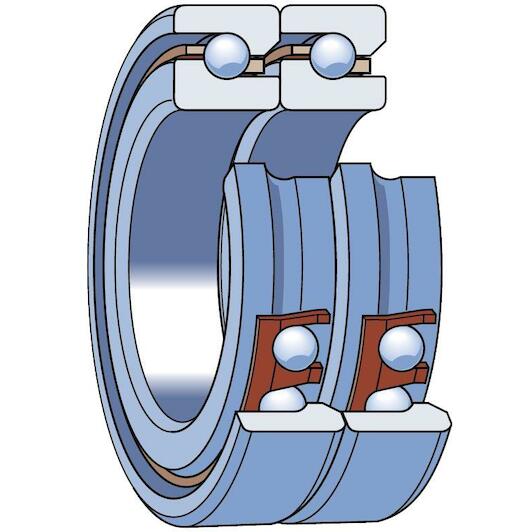

Double row angular contact ball bearing, with two-piece inner ring and relubrication feature, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement. The two-piece inner ring enables incorporation of more balls, resulting in higher load carrying capacity. The annular lubrication groove and holes in the outer ring facilitates relubrication.

  • Accommodate very high axial loads in both directions, radial loads, and tilting moments
  • Relubrication feature
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 180 mm
  • Width: 66 mm
  • Number of rows: 2
  • Axial clearance: NSTD
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 259,5 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577008008
  • Supplier number: SKF 305262 D
Inner diameter
180 mm
Width
66 mm
Number of rows
2
Axial clearance
NSTD
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
259,5 mm
Basic static load rating
310
Locating feature, bearing outer ring
None
Ring type
Two-piece inner ring and one-piece outer ring
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
With
Reference speed
2400
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Machined metal
Material, bearing
Bearing steel
Sealing
Without
Axial internal clearance
NSTD
Contact angle
32
Limiting speed
2600
Bore diameter
180
Basic dynamic load rating
225
Coating
Without
Outside diameter
259.5
Universal matching bearing
No
