skf_305256d
SKF

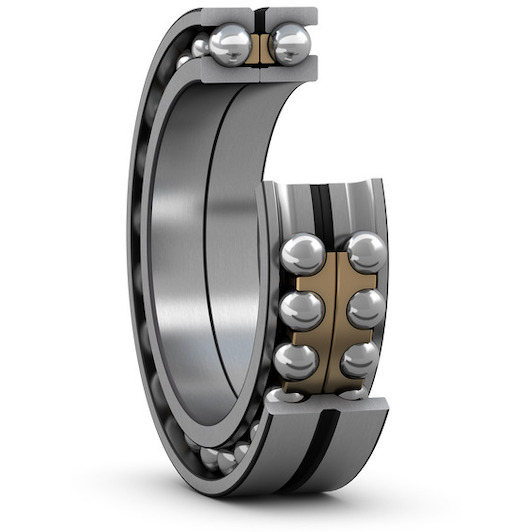

SKF 305256 D double-row angular contact ball bearing with split inner ring and relubrication option 120 mm

Recommended Retail Price €3,352.76
1,659.80 tax incl.
€1,371.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Double row angular contact ball bearing, with two-piece inner ring and relubrication feature, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement. The two-piece inner ring enables incorporation of more balls, resulting in higher load carrying capacity. The annular lubrication groove and holes in the outer ring facilitates relubrication.

  • Accommodate very high axial loads in both directions, radial loads, and tilting moments
  • Relubrication feature
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 66 mm
  • Number of rows: 2
  • Axial clearance: NSTD
  • Seal (bearing): Without seal
  • Material (cage): Brass (solid)
  • Outer diameter: 190 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577007995
  • Supplier number: SKF 305256 D
Inner diameter
120 mm
Width
66 mm
Number of rows
2
Axial clearance
NSTD
Seal (bearing)
Without seal
Material (cage)
Brass (solid)
Outer diameter
190 mm
Basic static load rating
232
Locating feature, bearing outer ring
None
Ring type
Two-piece inner ring and one-piece outer ring
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
With
Reference speed
3400
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Cage
Machined metal
Material, bearing
Bearing steel
Sealing
Without
Bore diameter
120
Axial internal clearance
NSTD
Contact angle
32
Limiting speed
3600
Basic dynamic load rating
182
Coating
Without
Outside diameter
190
Universal matching bearing
No
