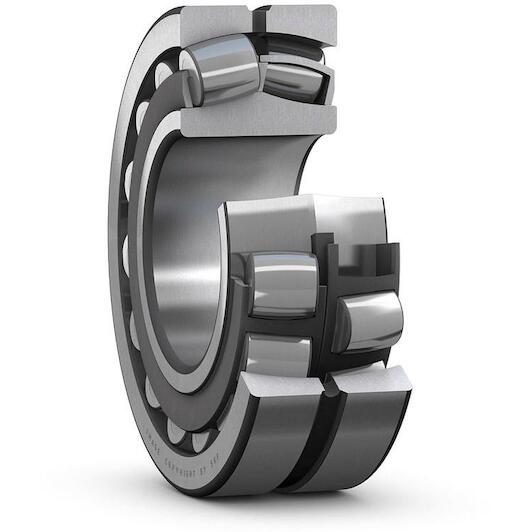

SKF 24038 CC/C3W33 spherical roller bearing cylindrical 190 x 290 x 100 mm

Recommended Retail Price €5,087.23
2,518.60 tax incl.
€2,081.49 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 190 mm
  • Width: 100 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 290 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577030160
  • Supplier number: SKF 24038 CC/C3W33
Inner diameter
190 mm
Width
100 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
290 mm
Skf performance class
SKF Explorer
Basic static load rating
1800
Relubrication feature
With
Reference speed
1400
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
C3
Basic dynamic load rating
1164
Sealing
Without
Limiting speed
2000
Bore diameter
190
Outside diameter
290
Tolerance class for dimensions
Normal
