SKF

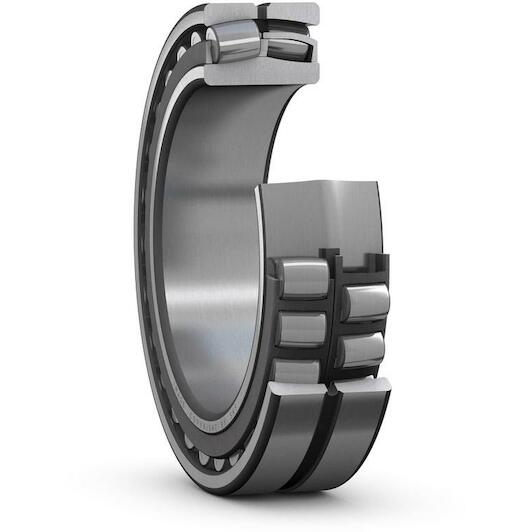

SKF 24015 CC/W33 spherical roller bearing cylindrical 75 x 115 x 40 mm

Recommended Retail Price €1,177.61
582.95 tax incl.
€481.78 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 40 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 115 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570584523
  • Supplier number: SKF 24015 CC/W33
Inner diameter
75 mm
Width
40 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
115 mm
Reference speed
3800
Basic static load rating
232
Relubrication feature
With
Tolerance class for run-out
P5
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Radial internal clearance
CN
Basic dynamic load rating
181
Sealing
Without
Limiting speed
5300
Bore diameter
75
Outside diameter
115
Tolerance class for dimensions
Normal
