SKF

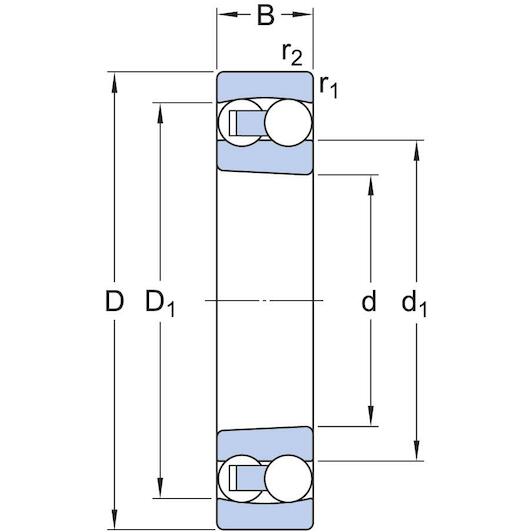

SKF 2317 M double-row self-aligning ball bearing cylindrical 85x180x60 mm

Recommended Retail Price €2,290.32
1,133.80 tax incl.
€937.02 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

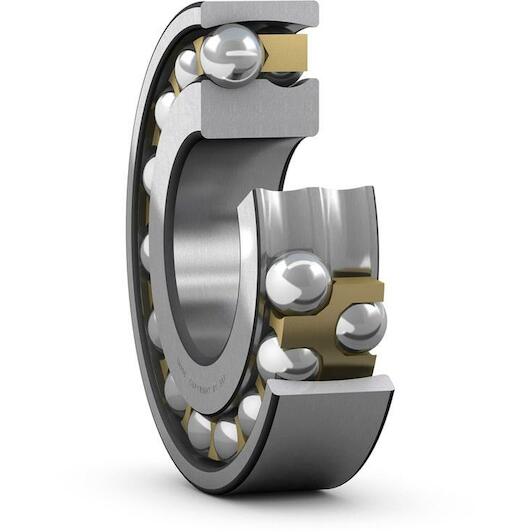

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction
Key features according to our expert
  • Inner diameter: 85 mm
  • Width: 60 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • Outer diameter: 180 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576605840
  • Supplier number: SKF 2317 M
Inner diameter
85 mm
Width
60 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Bore type
Cylindrical
Outer diameter
180 mm
Basic static load rating
51
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
CN
Cage
Machined metal
Relubrication feature
Without
Reference speed
6700
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
4800
Bore diameter
85
Basic dynamic load rating
140
Outside diameter
180
