What are the dimensions of the SKF 2312 ball bearing?

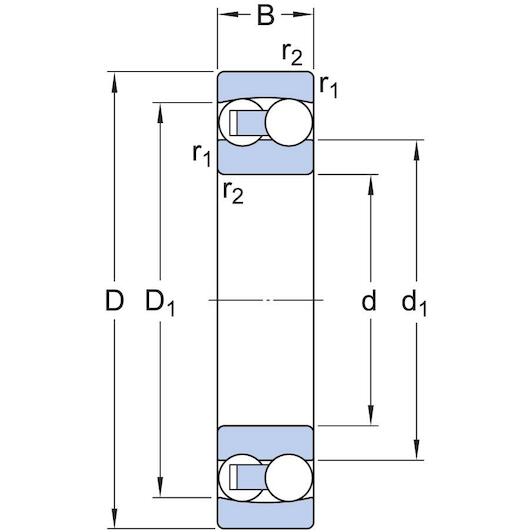

It has an inside diameter of 60 mm, an outside diameter of 130 mm, and a width of 46 mm.

What type of bore does this bearing have?

It features a cylindrical bore for direct mounting onto a straight 60 mm shaft.

The double row and sphered outer ring raceway easily accommodate shaft deflection and angular misalignment.

No, it is an open bearing without seals, intended for lubrication within a housing.

It has standard CN radial internal clearance.

Supplier number: SKF 2312 | EAN 7316576605253

Recommended Retail Price €634.14

313.80 tax incl.

€259.34 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Product information FAQ

€313.80

In stock - tax incl.

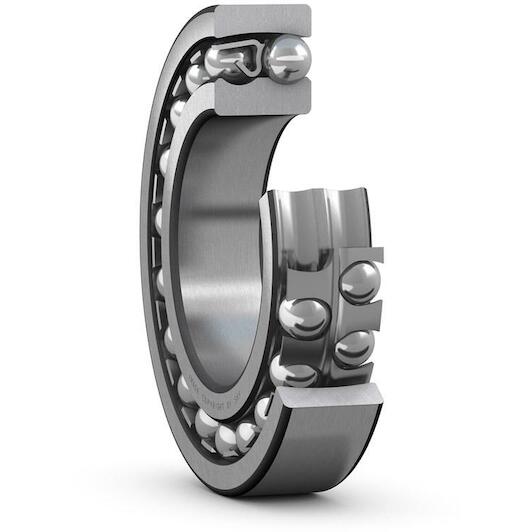

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Answered by specialists

What are the dimensions of the SKF 2312 ball bearing?: It has an inside diameter of 60 mm, an outside diameter of 130 mm, and a width of 46 mm.
What type of bore does this bearing have?: It features a cylindrical bore for direct mounting onto a straight 60 mm shaft.
What is the main advantage of a double-row self-aligning bearing?: The double row and sphered outer ring raceway easily accommodate shaft deflection and angular misalignment.
Is this SKF bearing sealed?: No, it is an open bearing without seals, intended for lubrication within a housing.
What radial internal clearance does this model have?: It has standard CN radial internal clearance.
