skf_2309mvq335
SKF

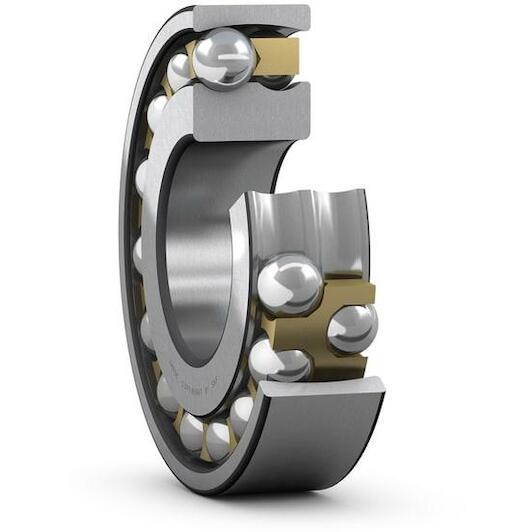

SKF 2309 M/VQ335 double-row self-aligning ball bearing 45 mm

Recommended Retail Price €637.55
315.60 tax incl.
€260.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 36 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • Outer diameter: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570816921
  • Supplier number: SKF 2309 M/VQ335
Inner diameter
45 mm
Width
36 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Bore type
Cylindrical
Outer diameter
100 mm
Basic static load rating
16.6
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
CN
Cage
Machined metal
Relubrication feature
Without
Reference speed
13000
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
9000
Bore diameter
45
Basic dynamic load rating
54
Outside diameter
100
