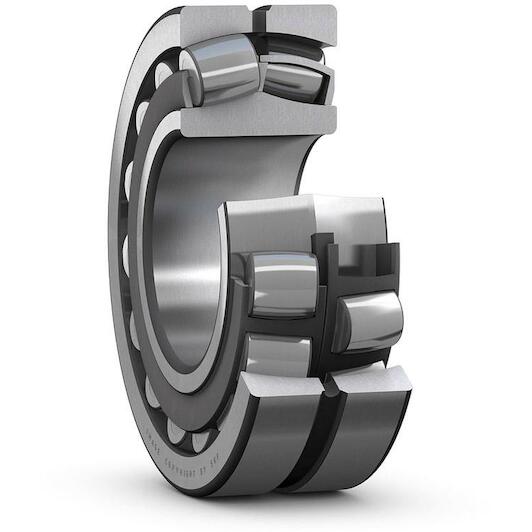

SKF 23022 CC/C4W33 spherical roller bearing cylindrical 110 x 170 x 45 mm

SKF
Supplier number: SKF 23022 CC/C4W33 | EAN 7316577016225
Recommended Retail Price €1,069.92
529.60 tax incl.
€437.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/11/2026

  • Ordered before 20:00 - delivered as of 26/11/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€529.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 110 mm
  • Width: 45 mm
  • Number of rows: 2
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 170 mm

Product description

  • Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts. Also available on request with special sized bore and/or outside diameters, suitable for reworked shafts and housings.

Avantages

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
110 mm
Width
45 mm
Number of rows
2
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
170 mm
Skf performance class
SKF Explorer
Basic static load rating
440 kN
Relubrication feature
With
Reference speed
3400 r/min
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
C4
Basic dynamic load rating
326 kN
Sealing
Without
Limiting speed
4300 r/min
Bore diameter
110 mm
Outside diameter
170 mm
Tolerance class for dimensions
Normal
  • Brand SKF
  • EAN 7316577016225
  • Supplier number SKF 23022 CC/C4W33
