SKF

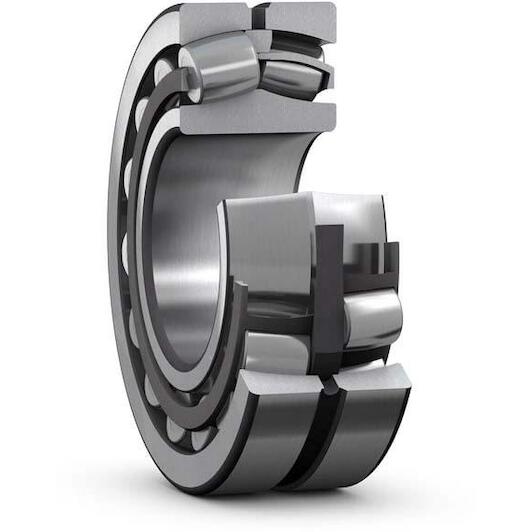

SKF 22332 CCJA/W33VA406 spherical roller bearing for shaker applications, with relubrication options 160 mm

Recommended Retail Price €7,642.32
3,783.60 tax incl.
€3,126.94 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Accommodate very high vibration levels
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 160 mm
  • Width: 114 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (cage): Surface-hardened sheet steel
  • Bore type: Cylindrical
  • Outer diameter: 340 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570234961
  • Supplier number: SKF 22332 CCJA/W33VA406
Inner diameter
160 mm
Width
114 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (cage)
Surface-hardened sheet steel
Bore type
Cylindrical
Outer diameter
340 mm
Skf performance class
SKF Explorer
Basic static load rating
1960
Relubrication feature
With
Reference speed
1500
Application
For vibratory applications
Lubricant
None
Cage
Surface-hardened sheet metal
Locating feature, bearing outer ring
Without
Candidate for remanufacturing
Yes
Radial internal clearance
C4
Basic dynamic load rating
1680
Sealing
Without
Limiting speed
1900
Bore diameter
160
Outside diameter
340
Tolerance class for dimensions
Normal, bore to P5 and outside diameter P6
