skf_22324cckc3
SKF

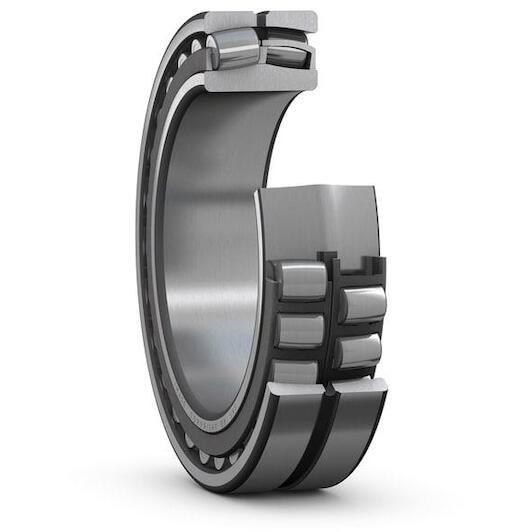

SKF 22324 CCK/C3 spherical roller bearing with tapered bore 120 mm

Recommended Retail Price €3,352.46
1,659.60 tax incl.
€1,371.57 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 86 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (cage): Brass (sheet)
  • Bore type: Tapered
  • Outer diameter: 260 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570227529
  • Supplier number: SKF 22324 CCK/C3
Inner diameter
120 mm
Width
86 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Brass (sheet)
Bore type
Tapered
Outer diameter
260 mm
Skf performance class
SKF Explorer
Basic static load rating
1120
Relubrication feature
Without
Reference speed
2000
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
C3
Basic dynamic load rating
1019
Sealing
Without
Limiting speed
2600
Bore diameter
120
Outside diameter
260
Tolerance class for dimensions
Normal
