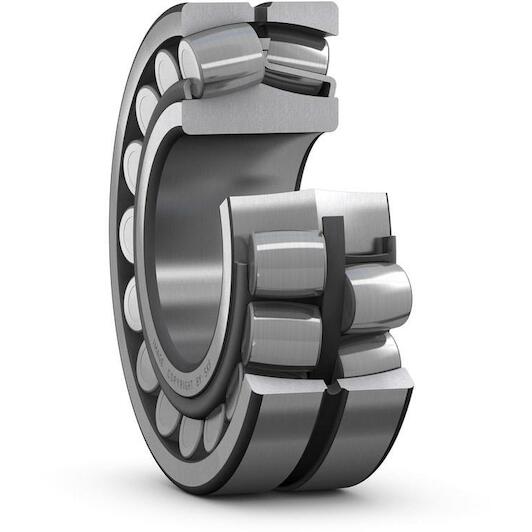

SKF 22322 E/C3 double-row cylindrical roller bearing 110 x 240 x 80 mm

Recommended Retail Price €2,358.17
1,167.40 tax incl.
€964.79 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 110 mm
  • Width: 80 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 240 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570589832
  • Supplier number: SKF 22322 E/C3
Inner diameter
110 mm
Width
80 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
240 mm
Skf performance class
SKF Explorer
Basic static load rating
1120
Relubrication feature
With
Reference speed
2000
Candidate for remanufacturing
Yes
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
C3
Basic dynamic load rating
989
Sealing
Without
Limiting speed
2800
Bore diameter
110
Outside diameter
240
Tolerance class for dimensions
Normal
