SKF

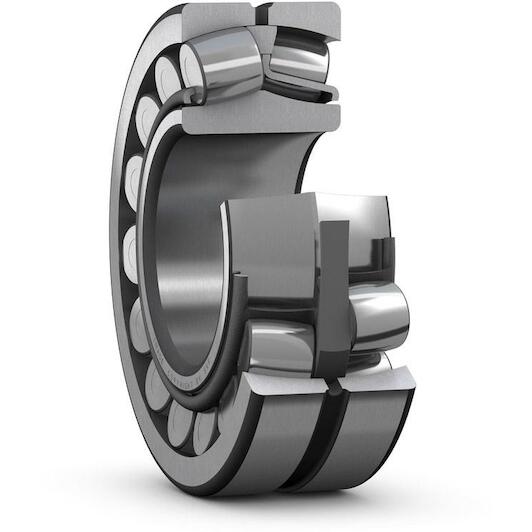

SKF 22320 EJA/VA406 spherical roller bearing cylindrical 100 x 215 x 73 mm

Recommended Retail Price €2,030.31
1,005.20 tax incl.
€830.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Accommodate very high vibration levels
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 73 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (cage): Surface-hardened sheet steel
  • Bore type: Cylindrical
  • Outer diameter: 215 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570671896
  • Supplier number: SKF 22320 EJA/VA406
Inner diameter
100 mm
Width
73 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (cage)
Surface-hardened sheet steel
Bore type
Cylindrical
Outer diameter
215 mm
Skf performance class
SKF Explorer
Basic static load rating
950
Relubrication feature
With
Reference speed
2400
Application
For vibratory applications
Lubricant
None
Cage
Surface-hardened sheet metal
Locating feature, bearing outer ring
Without
Candidate for remanufacturing
Yes
Radial internal clearance
C4
Basic dynamic load rating
847
Sealing
Without
Limiting speed
3000
Bore diameter
100
Outside diameter
215
Tolerance class for dimensions
Normal, bore to P5 and outside diameter P6
