SKF

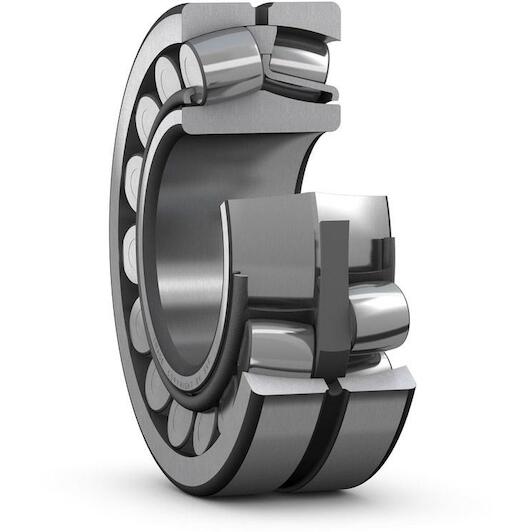

SKF 22315 EJA/VA405 spherical roller bearing cylindrical 75 x 160 x 55 mm

Recommended Retail Price €952.17
471.40 tax incl.
€389.59 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Accommodate very high vibration levels
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 55 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (cage): Surface-hardened sheet steel
  • Bore type: Cylindrical
  • Outer diameter: 160 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570725070
  • Supplier number: SKF 22315 EJA/VA405
Inner diameter
75 mm
Width
55 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (cage)
Surface-hardened sheet steel
Bore type
Cylindrical
Outer diameter
160 mm
Skf performance class
SKF Explorer
Basic static load rating
475
Relubrication feature
With
Reference speed
3200
Application
For vibratory applications
Lubricant
None
Cage
Surface-hardened sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
C4
Basic dynamic load rating
462
Sealing
Without
Limiting speed
4300
Bore diameter
75
Outside diameter
160
Tolerance class for dimensions
Normal, bore to P5 and outside diameter P6
