What are the dimensions of this bearing?

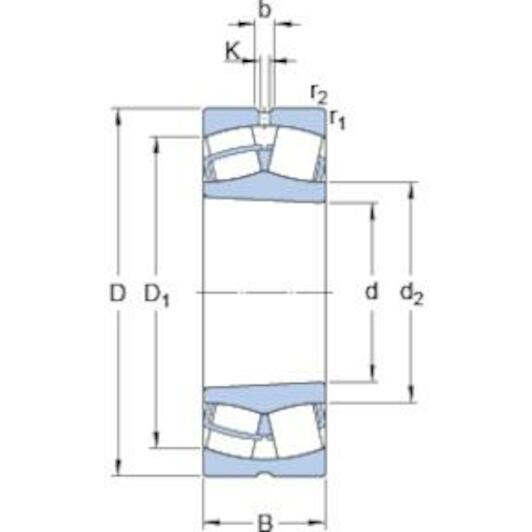

This bearing has a 60 mm bore diameter, a 130 mm outside diameter, and a width of 46 mm.

What does the C3 clearance designation mean?

C3 indicates greater radial internal clearance than normal, suitable for heavy loads and high operating temperatures.

What type of bore does this SKF spherical roller bearing have?

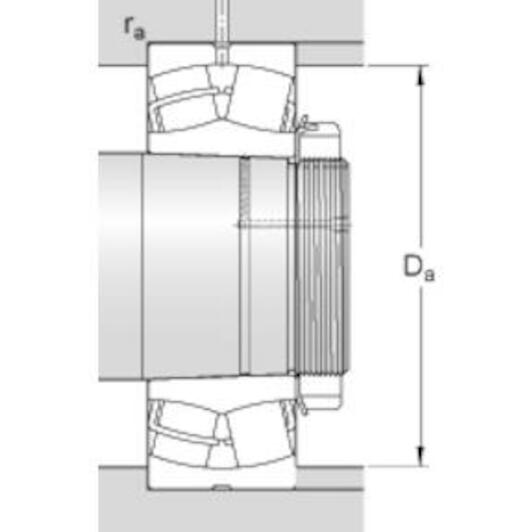

It features a tapered bore (1:12 taper), designed for mounting on tapered shaft seats or adapter sleeves.

Does this bearing support relubrication?

Yes, it is equipped with relubrication features on the outer ring for straightforward maintenance.

Is this spherical roller bearing sealed?

No, this is an open bearing without integrated seals.

SKF 22312 EK/C3 double-row tapered roller bearing 60 x 130 x 46 mm

Supplier number: SKF 22312 EK/C3 | EAN 7316576653759

Recommended Retail Price €552.03

273.20 tax incl.

€225.79 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 16/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy load reliability for industrial shafts

Practical benefits

Dependable Skf spherical roller bearing: You accommodate heavy radial and axial loads in both directions with the robust two-row roller construction.
Self-aligning design reduces friction: You compensate for shaft deflections and angular misalignment without generating excess heat or premature component wear.
Easy mounting and relubrication: Thanks to the tapered bore and built-in lubrication features, you can install and maintain the bearing with ease.

In a nutshell

The right choise for

Keep your heavy industrial machinery running smoothly and reliably with the Skf 22312 EK/C3 double-row spherical roller bearing. Built to handle heavy combined radial and axial loads in both directions, this bearing delivers dependable stability under demanding conditions. Its self-aligning design naturally accommodates shaft deflections and angular misalignment without causing excess friction or heat build-up. The tapered bore ensures secure and straightforward mounting on tapered shafts or adapter sleeves, while the increased C3 radial internal clearance prevents seizing during thermal expansion. Integrated relubrication features in the outer ring make ongoing maintenance quick and efficient.

Product information FAQ

€273.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 46 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 130 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 46 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Tapered
Outer diameter: 130 mm
Reference speed: 4000
Basic static load rating: 335
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: C3
Basic dynamic load rating: 325
Sealing: Without
Limiting speed: 5300
Bore diameter: 60
Outer diameter: 130
Tolerance class for dimensions: Normal

Brand SKF
01090403
EAN 7316576653759
Supplier number SKF 22312 EK/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: This bearing has a 60 mm bore diameter, a 130 mm outside diameter, and a width of 46 mm.
What does the C3 clearance designation mean?: C3 indicates greater radial internal clearance than normal, suitable for heavy loads and high operating temperatures.
What type of bore does this SKF spherical roller bearing have?: It features a tapered bore (1:12 taper), designed for mounting on tapered shaft seats or adapter sleeves.
Does this bearing support relubrication?: Yes, it is equipped with relubrication features on the outer ring for straightforward maintenance.
Is this spherical roller bearing sealed?: No, this is an open bearing without integrated seals.
