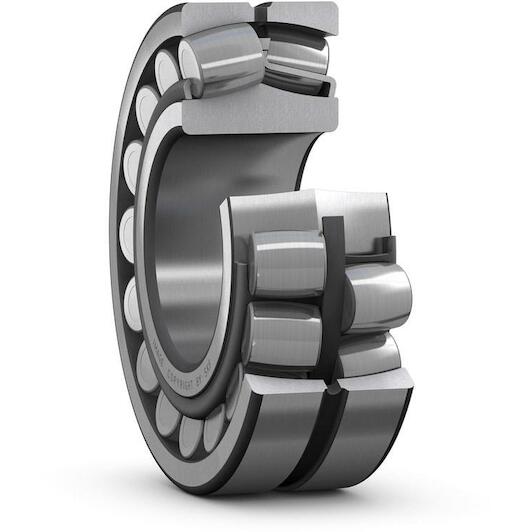

SKF 22220 E/C2 spherical roller bearing cylindrical 100 x 180 x 46 mm

Supplier number: SKF 22220 E/C2 | EAN 7316571088976
This product has been discontinued.



Product information

Key features according to our expert

  • Inner diameter: 100 mm
  • Width: 46 mm
  • Number of rows: 2
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: C2
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 180 mm

Product description:

  • Spherical roller bearings, also called pendulum roller bearings, have two rows of rollers with a common spherical raceway in the outer ring
  • The two raceways of the inner ring are at an angle to the centre line of the shaft
  • The bearings can adjust and are therefore insensitive to shaft misalignment relative to the housing and to shaft deflection
  • Spherical roller bearings can support not only high radial loads but also axial loads in both directions

Documents

All Features

Inner diameter
100 mm
Width
46 mm
Number of rows
2
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
C2
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
180 mm
Basic static load rating
490 kN
Locating feature, bearing outer ring
Without
Tolerance class
Normal
Radial internal clearance
C2
Lubricant
None
Relubrication feature
With
Reference speed
3,400 r/min
Skf performance class
SKF Explorer
Tolerance class for dimensions
Normal
Cage
Sheet metal
Sealing
Without
Basic dynamic load rating
433 kN
Limiting speed
4,500 r/min
Tolerance class for run-out
P5
Bore diameter
100 mm
Outer diameter
180 mm
  • Brand SKF
  • EAN 7316571088976
  • Supplier number SKF 22220 E/C2
