What are the dimensions of this bearing?

This bearing has a 50 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.

What type of bore does the SKF 22210 E have?

It features a straight cylindrical bore for direct shaft mounting.

Can this spherical roller bearing be relubricated?

Yes, it is equipped with relubrication features, including a lubrication groove and holes.

What is the radial internal clearance of this bearing?

This bearing has standard normal radial clearance (CN).

Does this bearing come sealed?

No, this is an open bearing without integrated seals.

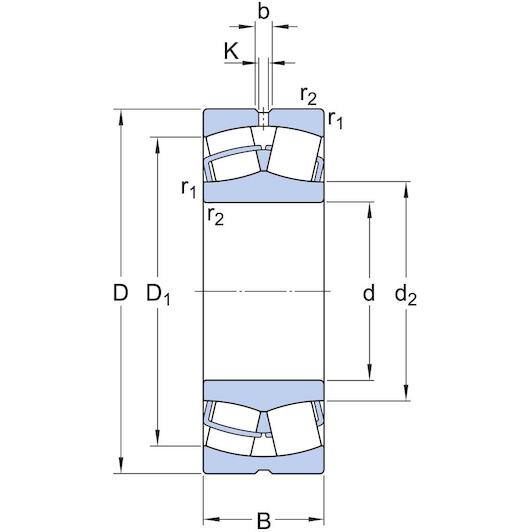

SKF 22210 E spherical roller bearing cylindrical 50 x 90 x 23 mm

Supplier number: SKF 22210 E | EAN 7316571905150

Recommended Retail Price €242.40

119.95 tax incl.

€99.13 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable power transmission under heavy loads

Practical benefits

Compensates for shaft deflection: The self-aligning design lets you accommodate angular misalignment and shaft deflections without increasing friction.
High load carrying capacity: Double rows of spherical rollers on the 22210 E distribute heavy radial and axial forces evenly for enhanced stability.
Simple and fast relubrication: Integrated lubrication grooves and holes allow you to relubricate smoothly and prolong the operating life of your machine.

In a nutshell

The right choise for

With the Skf 22210 e spherical roller bearing, you keep heavy industrial drivetrains running smoothly under demanding conditions. The self-aligning design effortlessly accommodates shaft deflections and angular misalignment without creating excessive friction. Its double row of spherical rollers evenly distributes heavy radial loads and simultaneous axial forces for maximum stability. Designed with a straight cylindrical bore (50 x 90 x 23 mm), this open bearing mounts directly onto the shaft. Integrated relubrication grooves and holes make routine maintenance quick and simple, helping you prevent premature downtime and extend machinery service life.

Product information FAQ

€119.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 23 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 90 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 23 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 90 mm
Reference speed: 7000
Basic static load rating: 108
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: CN
Basic dynamic load rating: 107
Sealing: Without
Limiting speed: 9500
Bore diameter: 50
Outer diameter: 90
Tolerance class for dimensions: Normal

Brand SKF
01090029
EAN 7316571905150
Supplier number SKF 22210 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: This bearing has a 50 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.
What type of bore does the SKF 22210 E have?: It features a straight cylindrical bore for direct shaft mounting.
Can this spherical roller bearing be relubricated?: Yes, it is equipped with relubrication features, including a lubrication groove and holes.
What is the radial internal clearance of this bearing?: This bearing has standard normal radial clearance (CN).
Does this bearing come sealed?: No, this is an open bearing without integrated seals.
