SKF 22205/20 E double-row cylindrical roller bearing 20 x 52 x 18 mm

Recommended Retail Price €200.50
99.20 tax incl.
€81.98 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/05/2026
each

  • Ordered before 20:00 - delivered as of 20/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

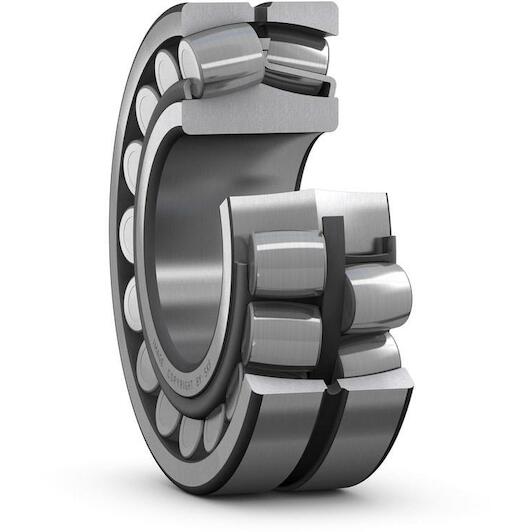

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 18 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571722177
  • Supplier number: SKF 22205/20 E
Inner diameter
20 mm
Width
18 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
52 mm
Reference speed
13000
Basic static load rating
44
Relubrication feature
With
Tolerance class for run-out
P5
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Radial internal clearance
CN
Basic dynamic load rating
49.9
Sealing
Without
Limiting speed
17000
Bore diameter
20
Outside diameter
52
Tolerance class for dimensions
Normal
