What are the dimensions of this SKF spherical roller bearing?

The bearing has an inside diameter of 65 mm, an outside diameter of 140 mm, and a width of 33 mm.

What does the C3 clearance designation mean?

The C3 suffix indicates greater radial internal clearance than normal, suitable for higher operating temperatures.

What type of bore does the SKF 21313 E/C3 have?

This bearing features a cylindrical bore for direct mounting onto a straight shaft.

Does this roller bearing have seals?

No, it is an open bearing without seals and includes features for easy relubrication.

Is this bearing self-aligning?

Yes, this double-row spherical roller bearing accommodates shaft deflections and angular misalignment smoothly.

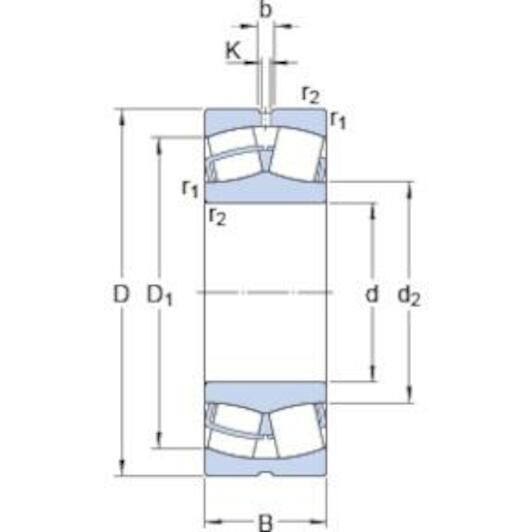

SKF 21313 E/C3 spherical roller bearing cylindrical 65 x 140 x 33 mm

Supplier number: SKF 21313 E/C3 | EAN 7316577732514

Recommended Retail Price €534.19

264.40 tax incl.

€218.51 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 16/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling in demanding machinery

Practical benefits

Double row spherical design: You accommodate heavy radial and axial loads effortlessly with the durable double-row roller construction.
Increased C3 internal clearance: The expanded internal clearance allows your shaft to expand smoothly under elevated operating temperatures.
Straightforward relubrication during maintenance: You service the bearing quickly through integrated lubrication features to optimize wear resistance and operational lifespan.

In a nutshell

The right choise for

Keep heavy industrial machinery and drives running reliably under tough conditions with the Skf 21313 E/C3 double-row spherical roller bearing. Built with a robust two-row design, this self-aligning bearing effortlessly accommodates heavy radial and axial loads while compensating for shaft deflections and angular misalignment. The increased C3 radial internal clearance provides the necessary room for thermal expansion at elevated operating temperatures, preventing bearing seizure. Designed with a 65 mm cylindrical bore for direct mounting onto a straight shaft, this open bearing features integrated relubrication provisions for fast maintenance and a long service life.

Product information FAQ

€264.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 33 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 140 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 33 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 140 mm
Reference speed: 4300
Basic static load rating: 270
Relubrication feature: With
Tolerance class for run-out: P5
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: C3
Basic dynamic load rating: 243
Sealing: Without
Limiting speed: 6000
Bore diameter: 65
Outer diameter: 140
Tolerance class for dimensions: Normal

Brand SKF
01090323
EAN 7316577732514
Supplier number SKF 21313 E/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF spherical roller bearing?: The bearing has an inside diameter of 65 mm, an outside diameter of 140 mm, and a width of 33 mm.
What does the C3 clearance designation mean?: The C3 suffix indicates greater radial internal clearance than normal, suitable for higher operating temperatures.
What type of bore does the SKF 21313 E/C3 have?: This bearing features a cylindrical bore for direct mounting onto a straight shaft.
Does this roller bearing have seals?: No, it is an open bearing without seals and includes features for easy relubrication.
Is this bearing self-aligning?: Yes, this double-row spherical roller bearing accommodates shaft deflections and angular misalignment smoothly.
