SKF

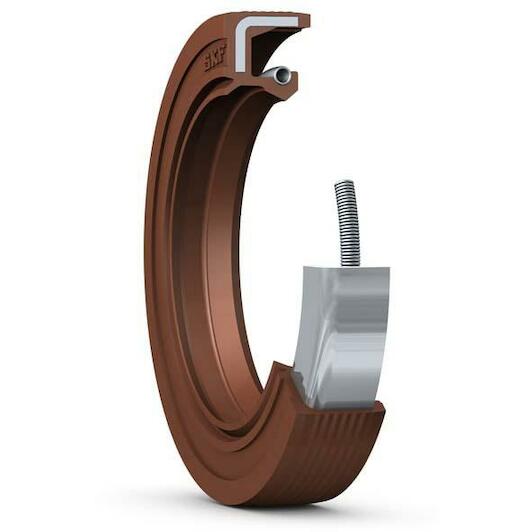

SKF 16X24X7 HMSA10 V1 radial shaft seal with rubber outer diameter and single sealing lip, for oil or grease

Recommended Retail Price €17.92
8.80 tax incl.
€7.27 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

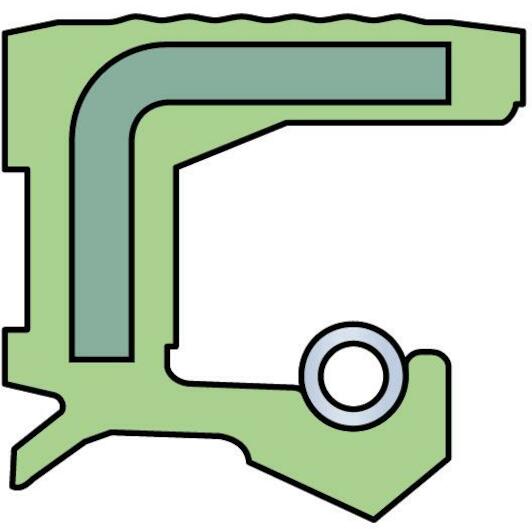

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

  • High pumping rate
  • Higher contamination exclusion with dust lip
  • With garter spring
  • Accommodate misalignment
Key features according to our expert

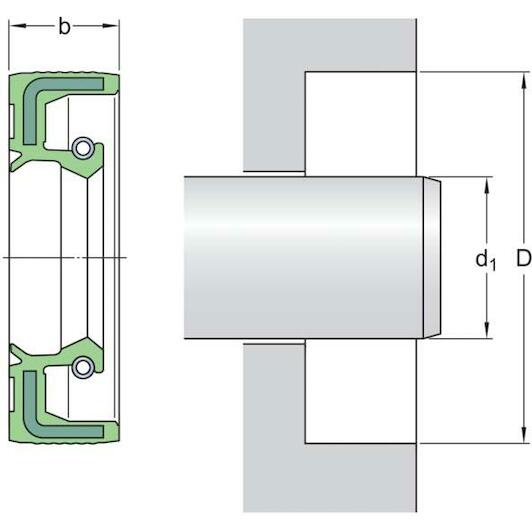

  • Inner diameter: 16 mm
  • Width: 7 mm
  • Material: FPM - FKM - Fluorocarbon Rubber (Viton®)
  • With dust lip: Yes
  • Version (radial oil seal according to DIN 3760): AS
  • Outer diameter: 24 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316574557806
  • Supplier number: SKF 16X24X7 HMSA10 V1
Inner diameter
16 mm
Width
7 mm
Material
FPM - FKM - Fluorocarbon Rubber (Viton®)
With dust lip
Yes
Version (radial oil seal according to din 3760)
AS
Outer diameter
24 mm
Auxiliary lip
Yes
Minimum operating temperature
-25
Rotational speed
14825
Type of outside diameter
Rubber metal reinforced
Unit system
Metric
Seal width
7
Maximum operating temperature
200
Housing bore diameter
24
Limiting speed
14825
Design
HMSA10
Sealing lip material
Fluoro rubber (FKM)
Shaft diameter
16
Permissible circumferential speed
12.42
