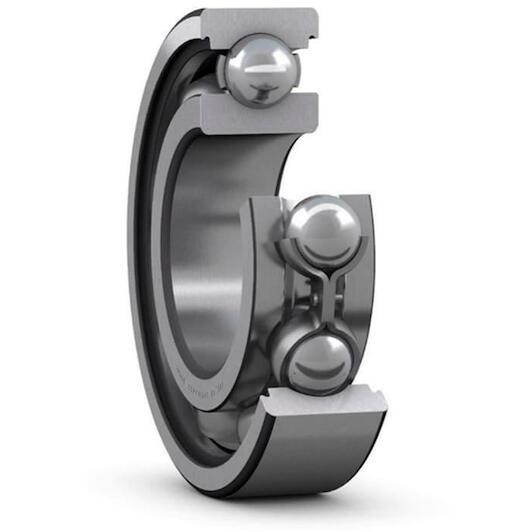

SKF 16040 single-row groove ball bearing cylindrical 200x310x34 mm

SKF
Supplier number: SKF 16040 | EAN 7316577004703
Recommended Retail Price €2,491.15
1,233.20 tax incl.
€1,019.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

  • Ordered before 20:00 - delivered as of 09/10/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€1,233.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 200 mm
  • Width: 34 mm
  • Number of rows: 1
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 310 mm

Product description

  • Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
200 mm
Width
34 mm
Number of rows
1
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
310 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
190
Relubrication feature
Without
Reference speed
4300
Lubricant
None
Cage
Sheet metal
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
2800
Bore diameter
200
Basic dynamic load rating
168
Outside diameter
310
Candidate for remanufacturing
Yes
  • Brand SKF
  • EAN 7316577004703
  • Supplier number SKF 16040
