SKF

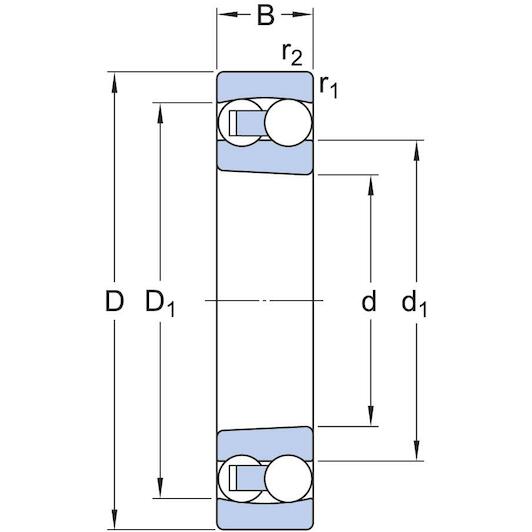

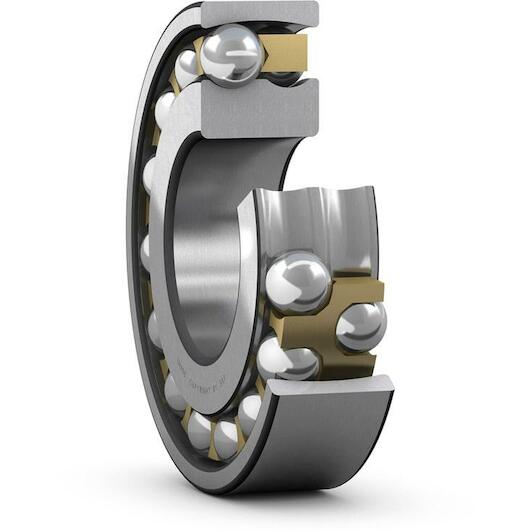

SKF 1224 KM double-row self-aligning ball bearing conical 120x215x42 mm

Recommended Retail Price €2,847.14
1,409.60 tax incl.
€1,164.96 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

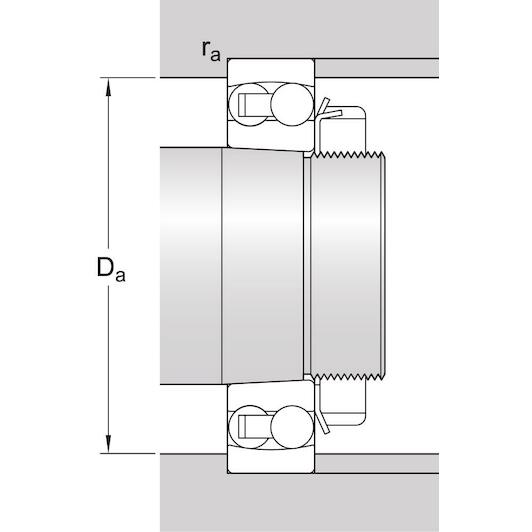

Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.

  • Ease of mounting via adapter sleeves or withdrawal sleeves
  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 42 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Bore type: Tapered
  • Outer diameter: 215 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570017366
  • Supplier number: SKF 1224 KM
Inner diameter
120 mm
Width
42 mm
Number of rows
2
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Bore type
Tapered
Outer diameter
215 mm
Basic static load rating
53
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
CN
Cage
Machined metal
Relubrication feature
Without
Reference speed
6300
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
4000
Bore diameter
120
Basic dynamic load rating
119
Outside diameter
215
