What are the dimensions of this ball bearing?

This double-row ball bearing has a 30 mm bore diameter, a 62 mm outside diameter, and a 16 mm width.

What is the purpose of the tapered bore?

The tapered bore (1:12 taper) allows easy mounting directly on a tapered shaft or using an adapter sleeve.

What is the advantage of a self-aligning bearing?

It accommodates angular misalignment and shaft deflections smoothly without increasing friction.

What cage material is used in the 1206 EKTN9?

The TN9 suffix denotes a cage made of glass-fibre reinforced polyamide (polymer).

Is this bearing sealed?

No, this is an open ball bearing without built-in seals.

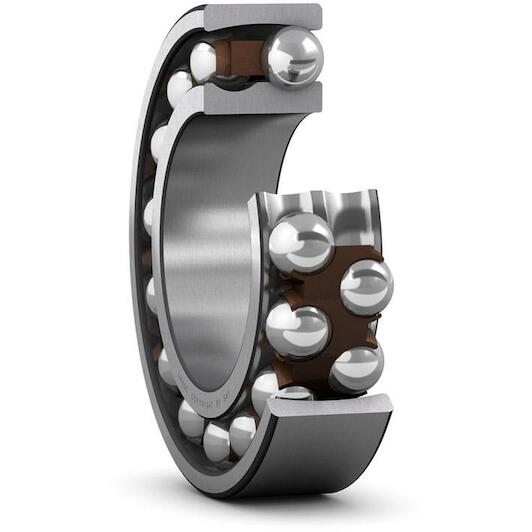

SKF 1206 EKTN9 double-row self-aligning ball bearing tapered 30x62x16 mm

Supplier number: SKF 1206 EKTN9 | EAN 7316576624650

Recommended Retail Price €77.56

38.40 tax incl.

€31.74 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation under misalignment with Skf

Practical benefits

Self-aligning for shaft deflection: The double-row design accommodates static and dynamic misalignment without increasing friction, keeping your machine running smoothly.
Easy tapered bore mounting: You easily secure the bearing onto adapter sleeves or tapered seating for a firm and precise fit.
Low-friction high-speed performance: The durable polyamide cage reduces heat build-up and running resistance, so you benefit from quiet and long-lasting operation.

In a nutshell

The right choise for

Keep your rotating machinery running smoothly with the Skf 1206 EKTN9 double-row self-aligning ball bearing, even when facing shaft deflections or housing misalignment. Its double-row design automatically accommodates static and dynamic angular errors, protecting your equipment from premature wear and unplanned downtime. The tapered bore enables quick, secure mounting onto adapter sleeves or stepped shafts. Furthermore, the lightweight glass-fibre reinforced polyamide cage minimizes operational friction and running temperatures at high speeds. Measuring 30X62X16 mm with normal radial internal clearance CN, this open bearing delivers dependable performance for industrial drives, conveyor systems, and machinery maintenance.

Product information FAQ

€38.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Tapered
Outer diameter: 62 mm

Product description

Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.

Ease of mounting via adapter sleeves or withdrawal sleeves
Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Tapered
Outer diameter: 62 mm
Basic static load rating: 4.65
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 24000
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 15000
Bore diameter: 30
Basic dynamic load rating: 15.6
Outer diameter: 62

Brand SKF
01030010
EAN 7316576624650
Supplier number SKF 1206 EKTN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: This double-row ball bearing has a 30 mm bore diameter, a 62 mm outside diameter, and a 16 mm width.
What is the purpose of the tapered bore?: The tapered bore (1:12 taper) allows easy mounting directly on a tapered shaft or using an adapter sleeve.
What is the advantage of a self-aligning bearing?: It accommodates angular misalignment and shaft deflections smoothly without increasing friction.
What cage material is used in the 1206 EKTN9?: The TN9 suffix denotes a cage made of glass-fibre reinforced polyamide (polymer).
Is this bearing sealed?: No, this is an open ball bearing without built-in seals.
