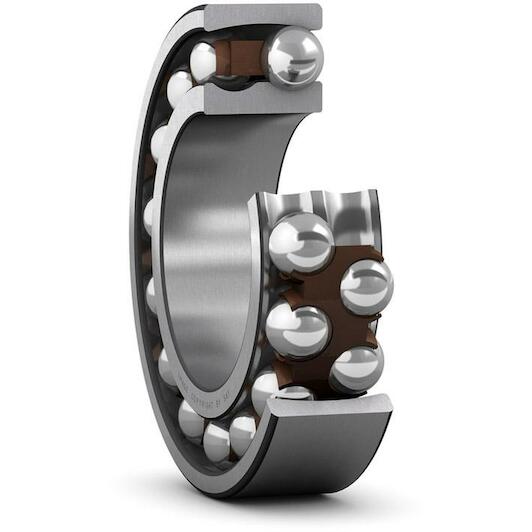

SKF 1204 ETN9/C3 double-row self-aligning ball bearing cylindrical 20x47x14 mm

SKF
Supplier number: SKF 1204 ETN9/C3 | EAN 7316576620508
Recommended Retail Price €80.66
39.80 tax incl.
€32.89 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€39.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 20 mm
  • Width: 14 mm
  • Number of rows: 2
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (cage): Plastic
  • Bore type: Cylindrical
  • Outer diameter: 47 mm

Product description

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

  • Accommodate static and dynamic misalignment
  • Excellent high-speed performance
  • Excellent light load performance
  • Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
20 mm
Width
14 mm
Number of rows
2
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (cage)
Plastic
Bore type
Cylindrical
Outer diameter
47 mm
Basic static load rating
3.4
Tolerance class
Normal
Retaining feature, inner ring
None
Radial internal clearance
C3
Cage
Non-metallic
Relubrication feature
Without
Reference speed
32000
Lubricant
None
Sealing
Without
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Coating
Without
Limiting speed
20000
Bore diameter
20
Basic dynamic load rating
12.7
Outer diameter
47
  • Brand SKF
  • EAN 7316576620508
  • Supplier number SKF 1204 ETN9/C3
