What are the dimensions of this SKF ball bearing?

The bearing has a 12 mm bore, a 32 mm outer diameter, and a 10 mm width.

What is the main advantage of a self-aligning ball bearing?

It compensates for shaft deflection and angular misalignment relative to the housing.

What cage and bore type does the 1201 ETN9 have?

This model features a straight cylindrical bore and a glass-fibre reinforced polyamide (plastic) cage.

Is this SKF bearing sealed?

No, this is an open bearing without seals, suitable for grease or oil lubrication.

What internal radial clearance does this bearing have?

The bearing has a standard radial internal clearance (CN class).

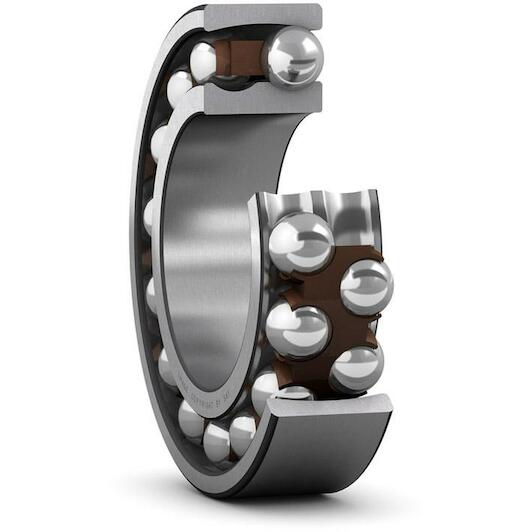

SKF 1201 ETN9 double-row self-aligning ball bearing cylindrical 12x32x10 mm

Supplier number: SKF 1201 ETN9 | EAN 7316576636646

Recommended Retail Price €83.28

41.20 tax incl.

€34.05 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth operation under shaft misalignment

Practical benefits

Reliable Skf performance: You easily compensate for dynamic angular misalignments and shaft deflections thanks to the double-row ball design.
Low friction polyamide cage: The lightweight polymer cage reduces internal friction, ensuring you achieve quiet operation with minimal heat buildup.
Straightforward cylindrical mounting: Featuring a standard 12 mm cylindrical bore, you mount this open bearing directly and effortlessly onto the shaft.

In a nutshell

The right choise for

With the Skf 1201 ETN9 double-row self-aligning ball bearing, you ensure smooth and reliable rotation even when facing shaft deflections or angular misalignment. Featuring two rows of balls and a common sphered outer ring raceway, this open bearing effortlessly accommodates dynamic misalignments relative to the housing, preventing harmful edge loading and premature wear. The low-friction glass-fibre reinforced polyamide cage reduces operating friction and heat buildup, delivering quiet performance in small electric motors, conveyor rollers, and light machinery. Featuring a standard 12 mm cylindrical bore and dimensions of 32x10 mm, it mounts quickly and securely directly onto the shaft.

Product information FAQ

€41.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Width: 10 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 32 mm

Product description

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Width: 10 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 32 mm
Basic static load rating: 1.43
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 50000
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 32000
Bore diameter: 12
Basic dynamic load rating: 6.24
Outer diameter: 32

Brand SKF
01030002
EAN 7316576636646
Supplier number SKF 1201 ETN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has a 12 mm bore, a 32 mm outer diameter, and a 10 mm width.
What is the main advantage of a self-aligning ball bearing?: It compensates for shaft deflection and angular misalignment relative to the housing.
What cage and bore type does the 1201 ETN9 have?: This model features a straight cylindrical bore and a glass-fibre reinforced polyamide (plastic) cage.
Is this SKF bearing sealed?: No, this is an open bearing without seals, suitable for grease or oil lubrication.
What internal radial clearance does this bearing have?: The bearing has a standard radial internal clearance (CN class).
