What are the dimensions of this bearing?

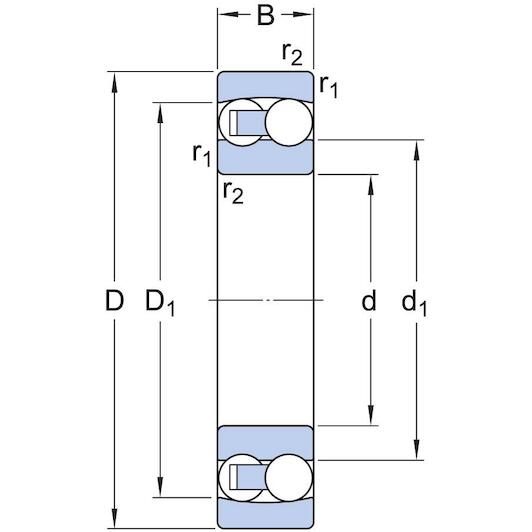

The bearing has an inside diameter of 8 mm, an outside diameter of 22 mm, and a width of 7 mm.

What is the main advantage of a self-aligning ball bearing?

It compensates for angular misalignment and shaft deflections without causing extra friction.

What does the TN9 suffix indicate?

The TN9 code indicates a cage made of glass-fibre reinforced polyamide (plastic material).

Is this ball bearing sealed?

No, this is an open-type bearing without integrated seals.

What type of bore and clearance does this model have?

The bearing has a cylindrical bore and normal internal radial clearance (CN).

SKF 108 TN9 double-row self-aligning ball bearing cylindrical 8x22x7 mm

Supplier number: SKF 108 TN9 | EAN 7316570017250

Recommended Retail Price €68.68

33.95 tax incl.

€28.06 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth alignment with Skf

Practical benefits

Automatic misalignment compensation: You easily accommodate shaft deflection and angular errors thanks to the dual-row design with a spherical outer raceway.
Low friction high speeds: The lightweight polyamide cage minimizes heat build-up and running noise, ensuring you maintain smooth rotational efficiency.
Compact cylindrical mounting: With standard dimensions of 8X22X7 mm, you fit this bearing directly onto straight shafts without hassle.

In a nutshell

The right choise for

With the Skf 108 TN9, you ensure smooth and reliable rotation in your machinery and precision instruments. This double-row self-aligning ball bearing effortlessly accommodates shaft deflections and angular misalignments, preventing premature bearing wear. The lightweight glass-fibre reinforced polyamide cage minimizes friction and heat build-up, allowing smooth, quiet operation at high speeds. Featuring a cylindrical bore and compact dimensions of 8X22X7 mm, you install this open bearing directly and accurately onto an 8 mm shaft.

Product information FAQ

€33.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 8 mm
Width: 7 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 22 mm

Product description

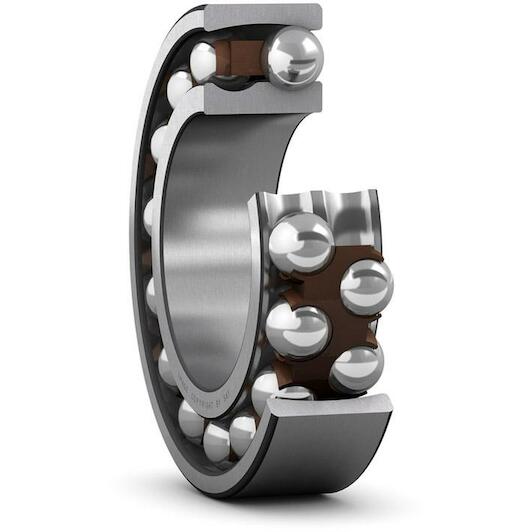

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Accommodate static and dynamic misalignment
Excellent high-speed performance
Excellent light load performance
Low friction

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 8 mm
Width: 7 mm
Number of rows: 2
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (cage): Plastic
Bore type: Cylindrical
Outer diameter: 22 mm
Basic static load rating: 0.56
Tolerance class: Normal
Retaining feature, inner ring: None
Radial internal clearance: CN
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 63000
Lubricant: None
Sealing: Without
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Coating: Without
Limiting speed: 40000
Bore diameter: 8
Basic dynamic load rating: 2.65
Outer diameter: 22

Brand SKF
01030455
EAN 7316570017250
Supplier number SKF 108 TN9

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has an inside diameter of 8 mm, an outside diameter of 22 mm, and a width of 7 mm.
What is the main advantage of a self-aligning ball bearing?: It compensates for angular misalignment and shaft deflections without causing extra friction.
What does the TN9 suffix indicate?: The TN9 code indicates a cage made of glass-fibre reinforced polyamide (plastic material).
Is this ball bearing sealed?: No, this is an open-type bearing without integrated seals.
What type of bore and clearance does this model have?: The bearing has a cylindrical bore and normal internal radial clearance (CN).
