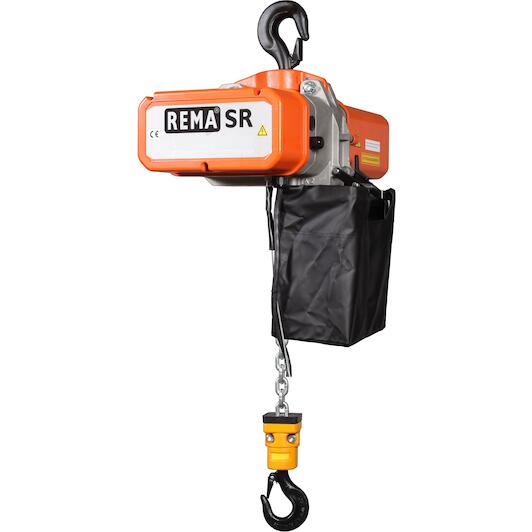

REMA SR111/54 electric chain hoist 400V/24V controlled, 3.2 t, with lifting speed 8/2 m/min, lifting height 5m - 0861057-5

Show more features

Max. weight

3200 kg

Length

5 m

Fem 9.511 hoist motor

1Bm

(a) larger chain box up to hoisting height

12 m

Lifting motor

4.4/1.1 kW

Hoisting speed

8/2 m/min

Standard chain magazine lifting height max.

6 m

Load chain dxt

11.3 x 31 mm

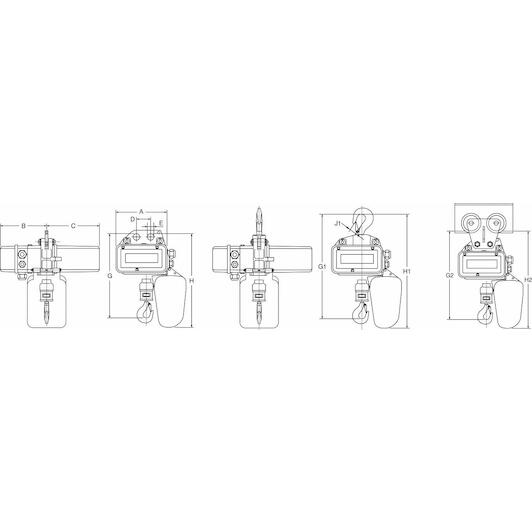

H2

738 mm

Number of lots

1

Lifting height

5 m

Operating height

3,8 m

Trolley type

6300

Switch-on time

25/25/150 ED%-sch/hr

Weight

108 kg

G

732 mm

A

359 mm

H

792 mm

Safe working load

3200 kg

B

291 mm

J

30 mm

C

410 mm

G2

678 mm
