Product description

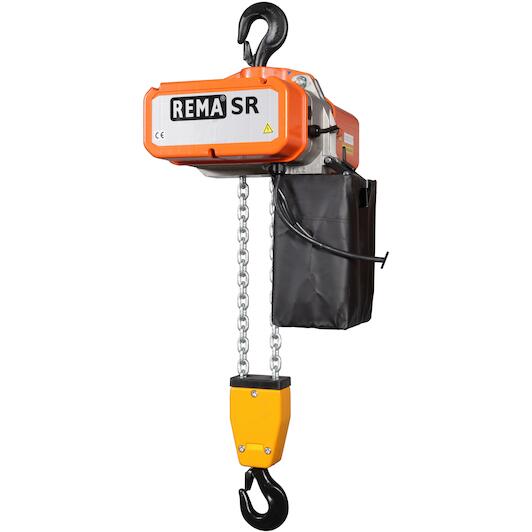

Rema® SR is a technically advanced and modern electric chain hoist, whose main advantages are its very high duty cycle and modular design.
Specifications
- 400 V, 3-phase, 50 Hz, 24 V control voltage, IP 55, insulation class F.
- Fitted with limit switches for highest and lowest hook positions.
- Visually appealing design with a low overall height.
- Very high duty cycle thanks to the air-cooled motor.
- Easy to use and maintain thanks to its modular design.
- Patented braking system that holds the load at any desired height.
- Slip clutch to prevent overload of the hoist.

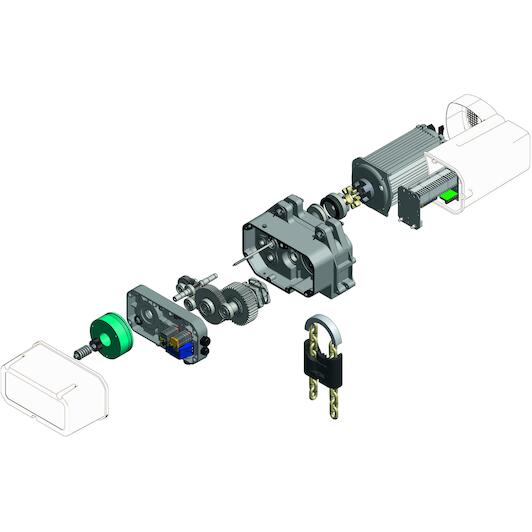

- Thanks to the modular design, the motor, enclosed drive, brake and drive motor can be replaced independently of one another.
- Quick and easy to convert from a single-part to a double-part hoist.
- DAT Class (Grade 8) load chain in accordance with EN 818/7.
Option
- Any other hoisting and control heights are also possible.
- Larger chain magazine.
- Radio control.
- Push or electric trolleys.
Marking
- In accordance with standards, CE
Temperature range
- Hoist fitted with thermal overload protection.
Standard
- EN 12100, EN 14492, EN 818-7
