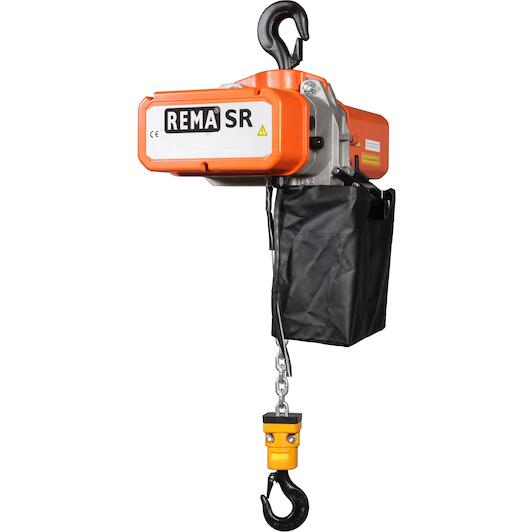

REMA SR070/01 electric chain hoist 230V/24V controlled 1 tonne, with hoisting speed 6 m/min, hoisting height 4m - 0801215-4

Show more features

Max. weight

1000 kg

Length

4 m

Fem 9.511 hoist motor

1Bm

(a) larger chain box up to hoisting height

17 m

Lifting motor

1.1 kW

Hoisting speed

6 m/min

Standard chain magazine lifting height max.

5 m

Load chain dxt

7.2 x 21 mm

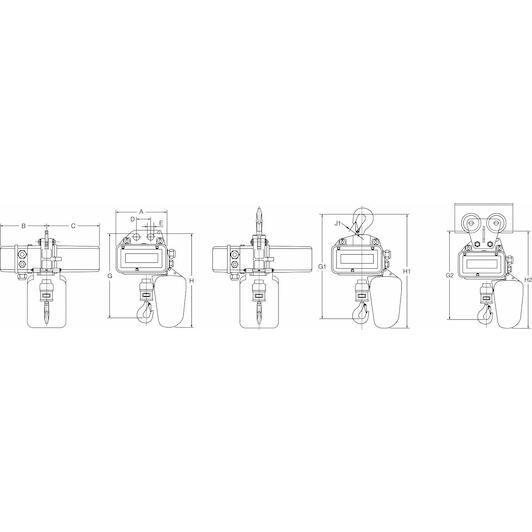

H2

507 mm

Number of lots

1

Lifting height

4 m

Operating height

2,8 m

Trolley type

HFN2000

Switch-on time

25/150 ED%-sch/u

G

500 mm

Weight

36 kg

A

266 mm

H

547 mm

Safe working load

1000 kg

B

232 mm

J

22 mm

C

274 mm

G2

460 mm
