Product description

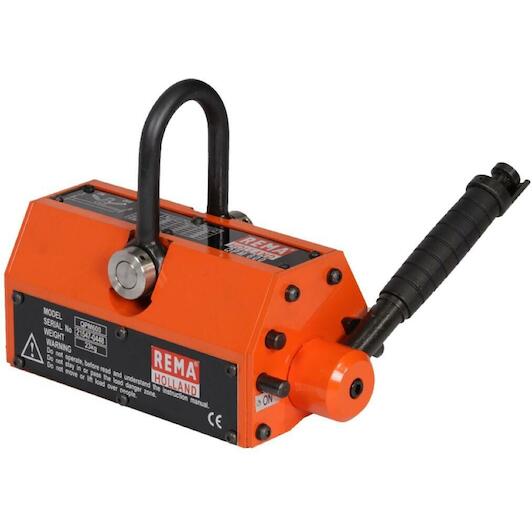

REMA QPM neodymium permanent lifting magnets are suitable for lifting and transporting flat and cylindrical ferromagnetic materials (those that 'behave magnetically like steel').
Features
- Safety factor 3.5.
- High-quality neodymium magnet material [NdFeb].
- Virtually no residual magnetism after release, preventing accidents.
- Simple and lightweight lever operation with a safety button.
- V-groove allows for the lifting of both flat and cylindrical workpieces.
- Compact and robust design featuring a large lifting eye.

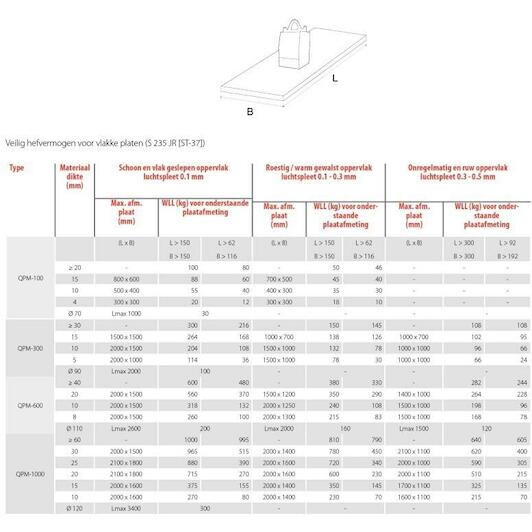

Selecting the right type
- Match the magnet type to the load to be lifted.
- The decisive factors are thickness, weight, size of the magnetic surface, material specification, surface structure, air gap and symmetrical load.
Application
- As a lifting attachment in lifting and hoisting technology for horizontal and vertical transport in warehouses, construction workshops, machine and assembly halls, shipyards, etc.
IMPORTANT!
- Never exceed the safe working load.
- Avoid impact loads.
- The full lifting capacity is only achieved if the surface of the steel plate to be lifted (St 37k, 25 mm thick) is machined, smooth and clean.
- Please ensure that, when lifting thin plates from a stack, only one plate is lifted at a time.
- Be aware of the 'peeling effect' when lifting thin plates.
- These will bend and may become detached from the lifting magnet.
- Never allow a lifting magnet to hit the ground hard.
- It is forbidden to stand beneath the load of a lifting magnet.
- When working with lifting magnets, no persons must be put at risk.
- Never lift loads on which loose objects are lying.
- Do not lift uneven or porous workpieces.
- The surface must be dry, clean and free of oil and grease.
- Only attach lifting magnets to crane hooks, load hooks etc. that are in safe working order.
- Avoid shock loads during lifting and lower the load in a controlled manner.
- Always check the condition of the control button on the lever, the guide and the safety pin before use.
- Have the lifting magnet inspected and certified annually by a qualified person or body.
Marking
- In accordance with the standard, CE
Standard
- EN 13155, EN 12100
- Safety factor 3.5
