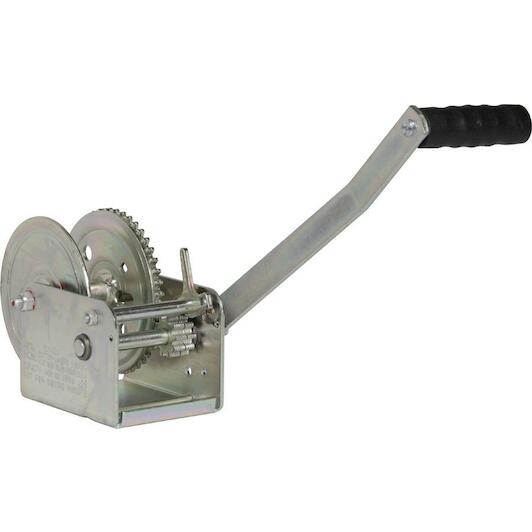

REMA DL-900A hand winch 409 kg (NOT FOR HEADLINES) - 2117001

Supplier number: REMA 2117001 | EAN 0085077150025
52.51 tax incl.
€43.40 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 1 products in stock.

  • Ordered before 20:00 - delivered tomorrow 21/11/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Controlled horizontal pulling with Rema

Practical benefits
  • Reliable trailer pulling power: A pulling capacity of 409 kg lets you haul small boats and rolling loads securely.
  • Smooth gear reduction ratio: The 3.2:1 gear ratio keeps manual cranking smooth while requiring only 7 kg of handle effort.
  • Weather-resistant galvanized build: Hardened steel gears and a zinc-plated frame protect the mechanism against corrosion in demanding outdoor environments.

In a nutshell

The right choise for

The Rema DL-900A hand winch lets you haul rolling loads and guide small boats onto trailers without electrical power. Built for horizontal pulling at boat ramps or in workshops, it provides a rated capacity of 409 kg.

A gear ratio of 3.2:1 limits handle effort to just 7 kg. The directional safety pawl locks tension securely during pulling, while a freewheel mode lets you unwind the line quickly.

Hardened steel gears and a zinc-plated frame protect against outdoor moisture and corrosion on trailers. This winch comes without a steel cable and is designed for a 5 mm diameter cable up to 10.9 m long.



€52.51
In stock - tax incl.

Product information

Key features according to our expert

  • Max. load: 409 kg
  • Steel cable incl.: No
  • Steel cable: 5mm x 10.9m
  • Winch type: Manual winch

Product description:

  • DL zinc winch only for pulling.

Properties:

  • Demountable crank (DL-2500 en DL-3500).
  • Zinc-plated housing with zinc-plated drum (Model DL-35 is fitted with a black drum).
  • Hardened steel gears.
  • Designs of 48 kg, 499 kg and 635 kg load capacity are fitted with locking pawls acting to the direction of idling.
  • Designs of 1134 kg and 1589 kg load capacity, respectively, are also fitted with manual brakes.

Standard delivery:

  • Without cable.

IMPORTANT::

  • Not suitable for lifting.

All Features

Max. load
409 kg
Steel cable incl.
No
Steel cable
5mm x 10.9m
Winch type
Manual winch
Drum diameter
16 mm
Lifting height per rev.
19 mm
Drum width
50 mm
Pendulum power
7 kg
Useful cable intake
10.9 m
Pendulum length
178 mm
Safe working load
408 kg
Cable diameter
5 mm
Weight
2 kg
Transfer
3.2:1
  • Brand REMA
  • EAN 0085077150025
  • Supplier number REMA 2117001

Frequently asked questions about this product

Answered by specialists
Can this hand winch be used for lifting operations?
No, this pulling winch is intended strictly for horizontal pulling tasks, such as trailers. Vertical lifting is not permitted.
Is the steel cable included with the winch?
No, it is supplied without a cable. The drum accommodates a 5 mm diameter cable up to 10.9 m long.
What is the maximum pull capacity of the Rema DL-900A?
The maximum rated capacity for pulling applications is 409 kg.
How does the ratcheting mechanism operate?
The winch uses a directional safety pawl that holds tension in one direction and offers a freewheel mode to unwind quickly.
Is the unit protected against corrosion outdoors?
Yes, both the frame housing and the drum are zinc-plated to withstand rough outdoor conditions.
