REMA

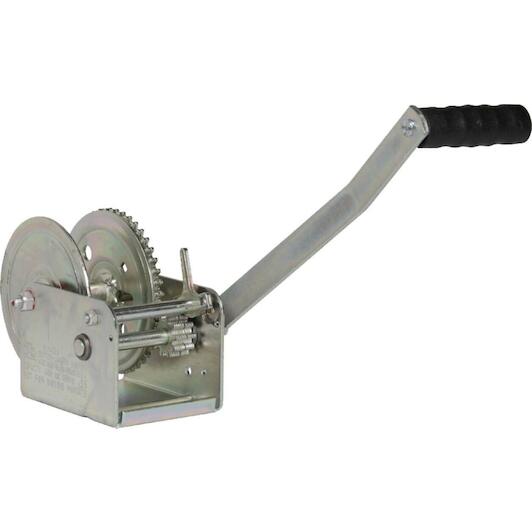

REMA DL-1100A hand winch 500 kg (NOT FOR HEADLINES) - 2117003

This article is not available

Product description:

  • DL zinc winch only for pulling.

Properties:

  • Demountable crank (DL-2500 en DL-3500).
  • Zinc-plated housing with zinc-plated drum (Model DL-35 is fitted with a black drum).
  • Hardened steel gears.
  • Designs of 48 kg, 499 kg and 635 kg load capacity are fitted with locking pawls acting to the direction of idling.
  • Designs of 1134 kg and 1589 kg load capacity, respectively, are also fitted with manual brakes.

Standard delivery:

  • Without cable.

IMPORTANT::

  • Not suitable for lifting.
Key features according to our expert
  • Max. load: 500 kg
  • Steel cable incl.: No
  • Steel cable: 5mm x 22.2m
  • Winch type: Manual winch
Specifications / All features
  • Brand: REMA
  • EAN: 8717365008931
  • Supplier number: REMA 2117003
Max. load
500 kg
Steel cable incl.
No
Steel cable
5mm x 22.2m
Winch type
Manual winch
Drum diameter
22 mm
Lifting height per rev.
18 mm
Drum width
53 mm
Pendulum power
9 kg
Useful cable intake
22.2 m
Pendulum length
178 mm
Safe working load
499 kg
Cable diameter
5 mm
Weight
3 kg
Transfer
3.7:1
